Custom 5.7inch 320×240 Monochrome LCD Module Available in yellow-green background with black text
Description:
The JM320240A-GSBLWFA5 is a 320×240 monochrome LCD module designed for reliable performance in diverse applications.

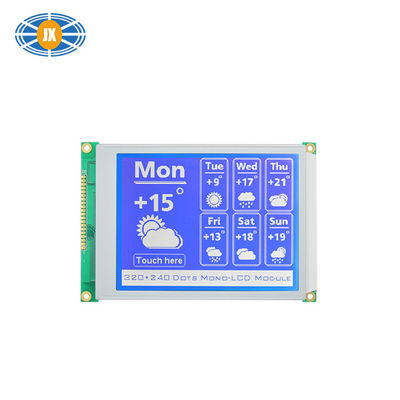

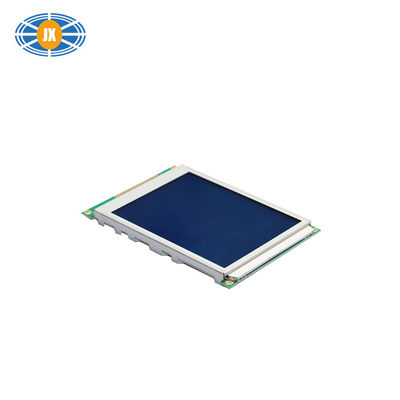

Featuring an STN (Blue) transmissive/negative LCD type and additionally supporting FSTN positive-transflective display, it offers flexible visibility options to suit different environmental needs. The module supports 8080/6800 series MCU interfaces and is driven by the RA8835 controller, ensuring compatibility with standard microcontroller systems.
1. Product Specifications and Features
(1)Key Specifications:
Display Size: 320 x 240 dots with a dot size of 0.33x0.33mm and pitch of 0.36x0.36mm.
Mechanical Dimensions: 160.00(L)×109.00(W)×11.00(H) mm, with a viewing area of 122.00×92.00 mm.
Electrical Parameters: Operates at VDD=5.0V (system power) and VOP=24.0V (LCD driver), with an -20°C to 70°C operating temperature range and -30°C to 80°C storage temperature range.
Backlight: White side-mounted LED backlight (VDD=5.0V, IDD=180mA), delivering 90-220 Cd/m² luminance.
(2)Customizable Features:

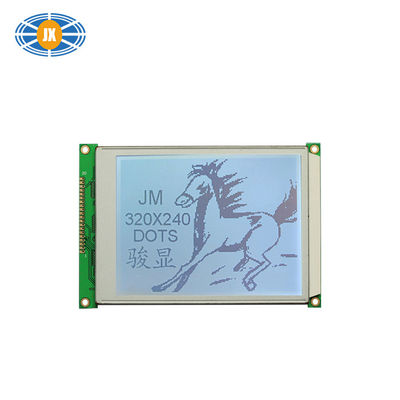

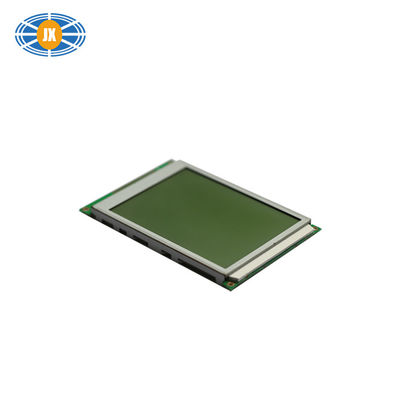

Color Options: Available in yellow-green background with black text, blue background with white text, and gray background with black text to suit different design needs.
Rugged Design: Built to withstand industrial environments with stable performance across temperature ranges.
2. Product technical parameters
| Keywords: |
5.7-inch monochrome LCD screen |
| Resolution: |
320×240 Pixels |
| LCD Size: |
160.0x109.0x11.0mm |
| Visual Area: |
122.0x92.0mm |
| Control driver: |
RA8835 |
| Surface Luminance: |
high brightness |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
STN/blue |
| Driving voltage: |
5V/3.3V |
| LED Lifetime: |
40,000 hours |
| Backlight: |
LED white light |
| Display Color: |
blue |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

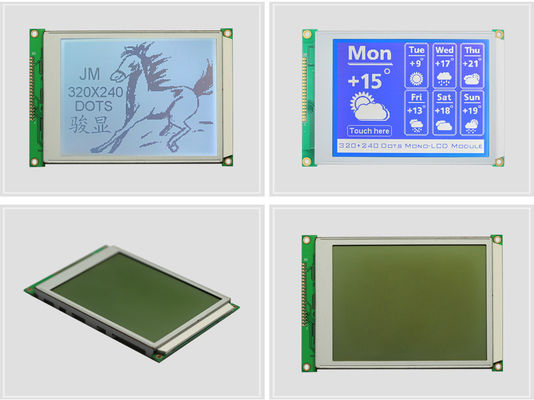

3. Product in details:
PS: This 5.7-inch 320×240 Pixels Graphic LCD Display is available for order with standard parameters. We also offer 320×240 Pixels Monochrome LCD Module in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are the recommended application areas for the Graphic LCD Display:
Industrial Control Panels & Instrumentation
- Medical Devices & Healthcare Monitors
- Smart Home/Smart Building Control Systems
- Embedded Systems & IoT Devices
- Handheld Equipment & Portable Electronics
- Automotive Dashboards & Vehicle Displays
- Consumer Electronics (e.g., appliances, POS machines)
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
