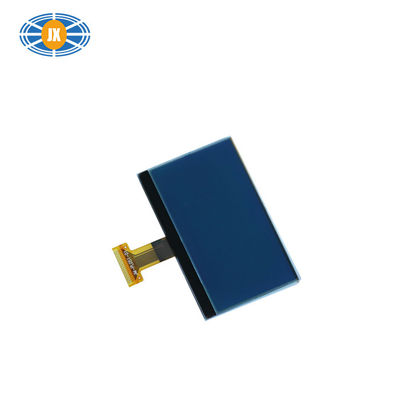

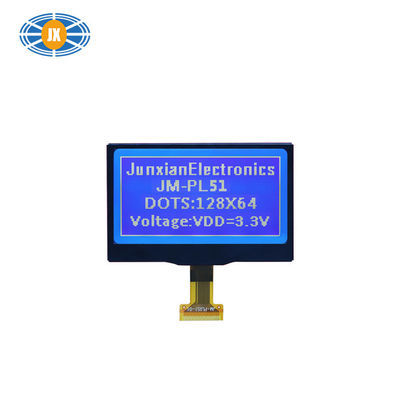

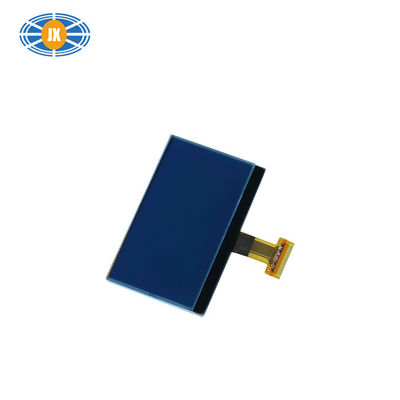

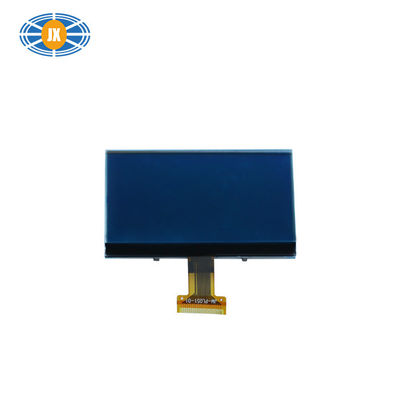

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver

I'm Online Chat Now

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver
128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver

Large Image :  128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Junxian or Customizable
Certification: ROHS,GB/T19001-2016/IS09001:2015
Model Number: JM-PL051-LG12864
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-4 weeks
Payment Terms: L/C,T/T,Paypal
Supply Ability: 200000 pieces per month

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver

Description
Product Type: 3.2-inch Monochrome LCD Screen Lcd Interface: 6800/8080/4-LINE
LCD Size: 76.00X47.90X2.8mm Resolution: 128×64 Pixels
Driving Voltage: 3.3V Surface Luminance: 150cd/m2
Control Driver: ST7567S Display Color: Blue/Gray
Backlight: LED White /yellow LED Lifetime: 40,000 Hours
Name: Graphic LCD Display
Highlight:

128 X 64 Graphic LCD Display

,

128 X 64 LCD Display Monochrome

,

Graphic LCD Display 3.2 Inch

Custom & OEM 3.2-inch Monochrome LCD Screen With 128×64 Pixel Lcd Module With ST7567S Driver IC Supports SPI from LCD manufacturer

1. Definition and Principle

COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
 It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.

2.Product Key Features and Advantages

(1)High-Clarity Visual Performance
 3.2-inch monochrome LCD with 128×64 pixel resolution delivers sharp text and graphics for precise information display in industrial, medical, and consumer applications.
STN/FSTN positive display mode ensures low pixel crosstalk and stable optical performance, providing reliable visibility in various environments.
(2) Integrated Driver & Flexible Connectivity
 Built-in ST7567S driver IC supports SPI serial interface (4-line) and 6800/8080 parallel interfaces, enabling seamless integration with microcontrollers and efficient data communication for rapid development.
(3) Compact & Slim Design
Ultra-compact dimensions (76.00×47.90×2.8mm) with a large visual area (72.0×39.5mm) maximize screen real estate in slim devices.
COG (Chip-On-Glass) technology reduces thickness and enhances integration density, ideal for space-constrained applications like wearables and handheld gadgets.
(4)Reliable Backlighting & Low Power
Selectable LED white/yellow backlight with 150cd/m² luminance ensures clear visibility in low-light conditions; display color options (blue/gray) enhance readability.
Low-power 3.3V DC operation minimizes energy consumption, suitable for battery-powered devices.
(5) Industrial-Grade Durability
Wide operating temperature range (-20°C to +70°C) and storage temperature (-30°C to +80°C) withstand harsh environments.
Long backlight lifetime (40,000+ hours) ensures sustained reliability for long-term use.
(6) Certified Compliance & Quality
 ISO9001:2015 (GB/T19001-2016) certified for consistent quality control.
- Fully RoHS and REACH compliant, meeting strict environmental standards for global markets.

3. Product technical parameters
Keywords: 3.2-inch monochrome LCD screen
Resolution: 128×64 Pixels
LCD Interface: 6800/8080/4-LINE
LCD Size: 76.00X47.90X2.8mm
Visual Area: 72.0X39.5mm
Control driver: ST7567S
Surface Luminance: 150cd/m2
Operating Temp: -20℃~+70
Storage Temp: -30℃~+80
Display Type: STN/FSTN
perspectives: 6.0'CLOCK
Driving voltage: 3.3V
LED Lifetime: 40,000 hours
Backlight: LED white /yellow
Display Color: Blue/Gray
Certificate: GB/T19001-2016/IS09001:2015
Compliance: REACH & RoHS Compliant

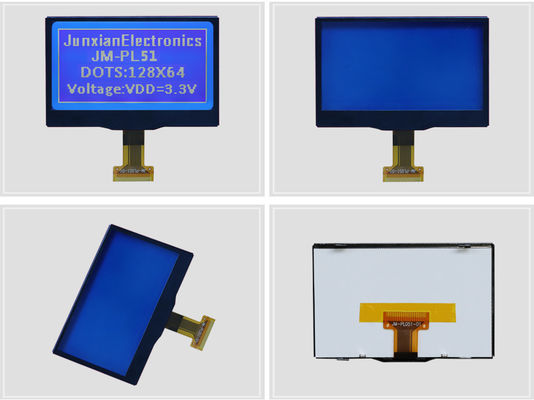

4. Product  in details:

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 0



PS: This 3.2-inch Monochrome LCD Screen is available for order with standard parameters. we have different specifications parameters of the 3.2-inch COG monochrome LCD monitor,If you need other sizes or customized products,  please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.



5.  Application fields

Here are some application fields of this COG Dot Matrix Display:
Industrial & Automation: Control panels, PLC interfaces, factory equipment monitors.

Medical Devices: Portable diagnostic tools, patient monitors, fitness trackers.
Consumer Electronics: E-readers, smart home displays, digital clocks, POS terminals.
Automotive & Aviation: Dashboard indicators, avionics displays, vehicle diagnostics.
Wearable Tech: Smart watches, health monitors, compact IoT devices.
 Instrumentation: Lab equipment, meters, and analytical instruments.



Why Choose JUNXian?

Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 1

1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 2

2. Custom LCD Displays & CTP-Integrated Modules

With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP).  Our professional capabilities enable end-to-end customization of critical components: FPC desigh, backlight materials,  PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 3

3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 4

4. Certificates and Honors

We hold the GB/T19001 - 2016/IS09001:2015 certificate,  ensuring that the quality of every product exceeds industry standards.

128 X 64 Graphic LCD Display 3.2 Inch Monochrome LCD Screen With ST7567S Driver 5

5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.



With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.

Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!



Please Note

All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
