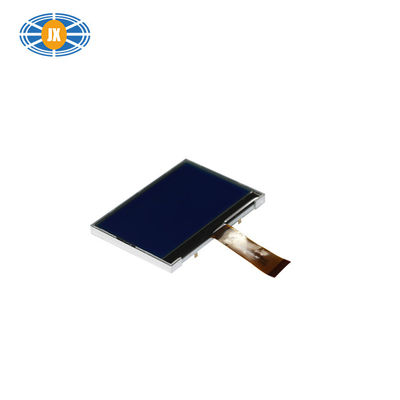

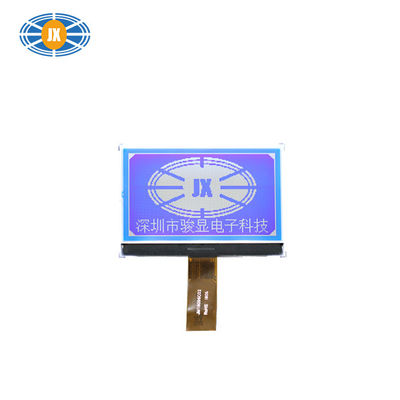

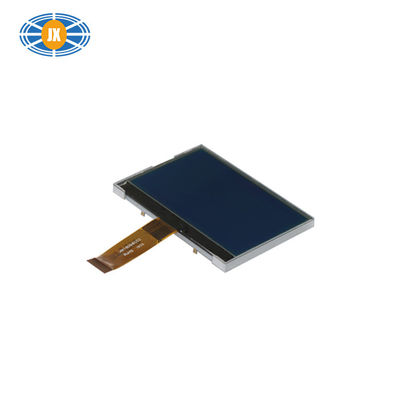

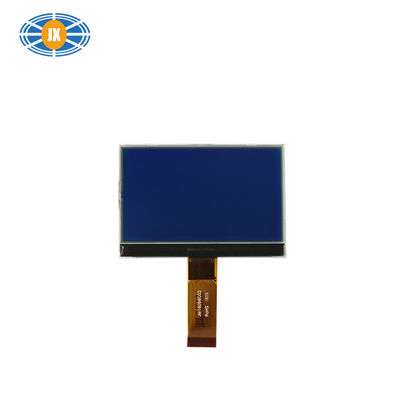

2.5 Inch COG Monochrome LCD Display Stable Performance LCD Screen With SPI4 Interface from LCD manufacturer
1. Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
2.Product Key Features and Advantages
(1) Industrial-Grade Compliance & Reliability
Certified to GB/T19001-2016/ISO9001:2015 (quality management), REACH, and RoHS (environmental standards), ensuring high-quality, eco-friendly performance for rigorous applications.
(2) Optimal Display Clarity & Compact Design
160×96 pixel resolution delivers sharp monochrome visuals for clear information presentation.
Compact dimensions (65.0×45.0×4.50mm overall, 57.18×32.62mm visual area) save space, ideal for space-constrained devices.
(3) Easy Integration & Stable Performance
SPI4 interface enables seamless system integration and smooth data transmission, reducing development time.
Driven by ST75160 controller for stable operation and precise function control, ensuring reliable performance.
(4) Enhanced Visibility & Energy Efficiency
Negative display/STN technology offers high contrast for clear readability in varying lighting conditions.
Low 3.3V driving voltage minimizes power consumption, suitable for battery-powered or low-voltage systems.
LED white backlight with 40,000-hour lifespan and 12 o’clock viewing angle ensures long-term usability and wide-angle visibility.
150cd/m² surface luminance enhances display clarity in diverse environments.
(5) Extreme Temperature Resistance
Operates reliably in -20℃～＋70℃ and stores at -30℃～＋80℃, making it suitable for harsh industrial, outdoor, or high-temperature applications.
3. Product technical parameters
| Keywords: |
2.5-inch COG monochrome LCD |
| Resolution: |
160×96 Pixels |
| LCD Interface: |
SPI4 |
| LCD Size: |
65.0×45.0×4.50mm |
| Visual Area: |
57.18×32.62mm |
| Control driver: |
ST75160 |
| Surface Luminance: |
150cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
Negative display/STN |
| Driving voltage: |
3.3V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white light |
| perspectives: |
12.0'CLOCK |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

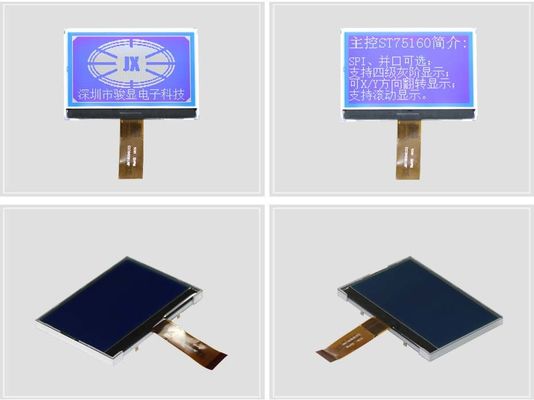

4. Product in details:
PS: This 2.5-inch COG Monochrome LCD Screen is available for order with standard parameters. we have different specifications parameters of the 2.5 -inch COG monochrome LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
5. Application fields
Here are some application fields of this COG Dot Matrix Display:
Industrial Instruments & Control Panels: For machinery, automation systems, and process control devices requiring durable, high-contrast displays.
Smart Home & IoT Devices: Compact design fits thermostats, security panels, and energy management systems.
Medical Equipment: Reliable performance for portable diagnostic tools, patient monitors, and medical indicators.
Automotive & Transportation: Dashboard displays, vehicle diagnostics, and outdoor signage with wide temperature tolerance.
Consumer Electronics: E-readers, fitness trackers, and other low-power devices prioritizing efficiency and longevity.
