Constom 192×64 Monochrome LCD Screen Compact Good Visibility COG Dot Matrix Display
Custom & OEM 192×64 Monochrome LCD Screen Compact Good Visibility COG Dot Matrix Display
1. Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
2.Product Key Features and Advantages
(1) Precision Design for Diverse Displays
192×64 dot matrix supports both graphic and character display with clear, stable visuals, ideal for applications requiring high accuracy.
FSTN, transflective/positive LCD type ensures excellent visibility in varying lighting conditions (indoor/outdoor), reducing reliance on backlighting.
(2) Compact & Space-Efficient Mechanical Structure
Outline dimension: 114.40(L)×51.00(W)×7.60(H) mm, designed for easy integration into compact devices without compromising display area.
Generous viewing area (102.00×37.00 mm) and active area (97.49×32.47 mm) deliver a broad, effective display range.
Fine dot size (0.463×0.463 mm) ensures sharp pixel precision for detailed visuals.
(3) Rugged Performance & Reliability
Wide operating temperature range (-20℃ to 70℃) and storage temperature (-30℃ to 80℃), suitable for harsh industrial, outdoor, and mobile environments.
1/65 duty, 1/9 bias drive method with VOP 11.50V and VDD 3.3V ensures efficient power usage and stable, flicker-free display.
Ergonomic 6 O'CLOCK viewing angle aligns with standard human visual orientation for optimal readability.
(4) Easy Integration & Secure Connectivity
COG + FPC connection offers robust, reliable attachment, simplifying installation and system integration for developers.
3. Product technical parameters
| Keywords: |
3-inch monochrome LCD screen |
| Resolution: |
192×64 Pixels |
| LCD Interface: |
Parallel/Serial |
| LCD Size: |
114.40x51.00x7.60mm |
| Visual Area: |
97.49x32.47mm |
| Surface Luminance: |
200cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
FSTN/outstanding |
| Driving voltage: |
3.3V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white light |
| Display Color: |
Gray glass, white background |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

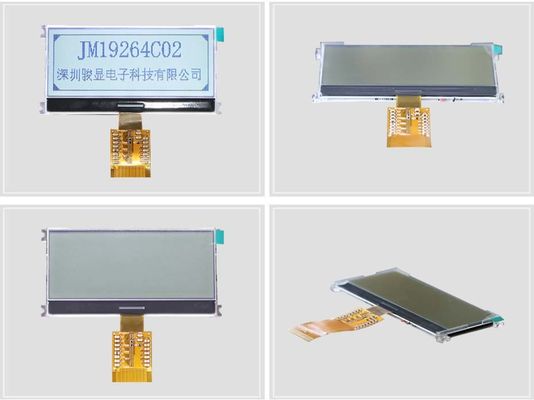

4. Product in details:
PS: This 192×64 Monochrome LCD Screen is available for order with standard parameters. we have different specifications parameters of the 192×64 COG monochrome LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are some application fields of this COG Dot Matrix Display:
Consumer Electronics: Ideal for use in calculators, digital clocks, and small home appliances, providing clear and concise information display.
Industrial Equipment: Well-suited for control panels, meters, and monitoring devices in industrial settings, ensuring reliable operation under diverse working conditions.
Portable Devices: Perfect for handheld devices like data loggers, portable terminals, and medical monitoring equipment, thanks to its low-power consumption and compact size.
Automotive Displays: Can be used for dashboard indicators, climate control displays, and other in-car informational displays, withstanding the temperature fluctuations within vehicles.
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC desigh, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
Please Note
All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
