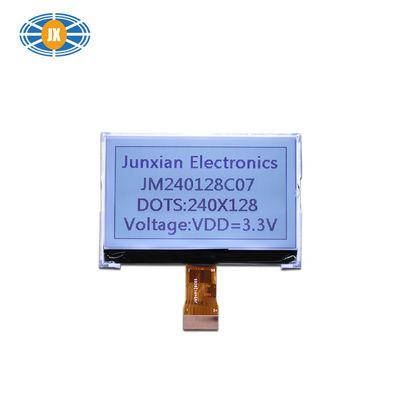

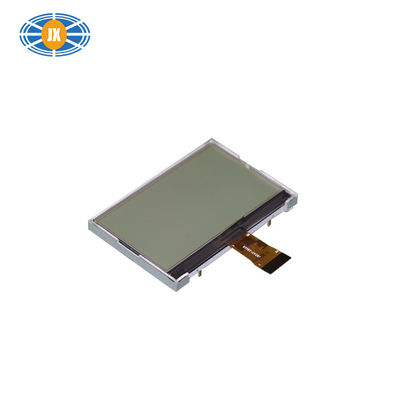

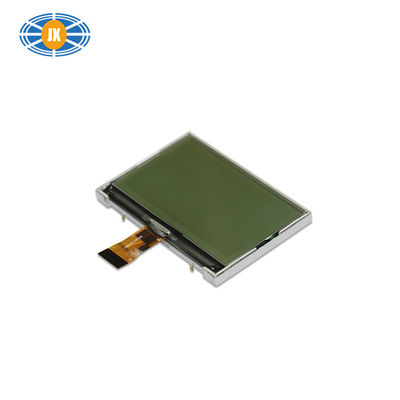

Custom & OEM 2.9-Inch COG Monochrome LCD With 240×128 FSTN Dual Interface Versatility COG Dot Matrix Display
1. Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
2.Product Key Features and Advantages
(1) FSTN Clarity for Monochrome Display:
2.9-inch FSTN dot matrix LCD (240×128 resolution, ash-colored) delivers superior contrast and sharp text/graphic rendering, outperforming standard STN in readability—ideal for data-intensive applications (e.g., meters, gauges).
(2) Dual Interface Versatility:
Supports Parallel/Serial interfaces, enabling seamless integration with diverse microcontroller systems. Reduces design complexity for engineers building industrial, portable, or automotive devices.
(3) Rugged Environmental Endurance:
Operates in -20℃~+70℃ (stores in -30℃~+80℃), surviving extreme temperatures (outdoor, industrial, automotive use). 40,000-hour LED backlight ensures long-term reliability.
(4)Compact COG Design:
Ultra-slim module (71.50×48.20×5.30mm) with COG (Chip-On-Glass) packaging saves space, perfect for portable gadgets (e.g., handheld testers, wearable monitors) and space-constrained setups.
(5) Certified Quality & Compliance:
ISO 9001:2015/GB/T19001-2016 certification guarantees consistent manufacturing. REACH & RoHS compliance ensures global market access (eco-friendly materials).
3. Product technical parameters
| Keywords: |
2.9-inch monochrome LCD screen |
| Resolution: |
240×128 Pixels |
| LCD Interface: |
Parallel/Serial |
| LCD Size: |
71.50x48.20x5.3mm |
| Visual Area: |
65.50x38.0mm |
| Control driver: |
ST75256 |
| Surface Luminance: |
200cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
FSTN |
| perspectives: |
12.0'CLOCK |
| Driving voltage: |
3.3V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white light |
| Display Color: |
ash-colored |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

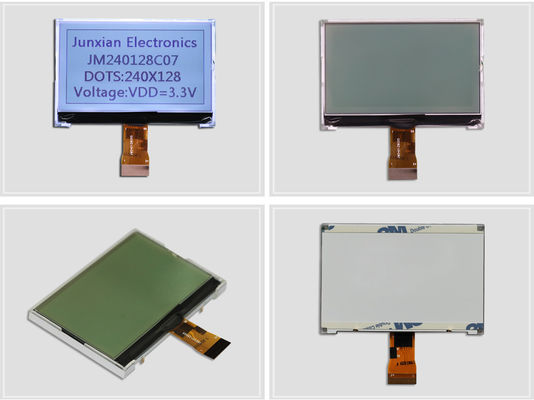

4. Product in details:
PS: This 2.9 inch 240×128 Monochrome LCD Screen is available for order with standard parameters. we have different specifications parameters of the 240*128 COG monochrome LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are some application fields of this COG Dot Matrix Display:
- Industrial Meters/Instruments: Power meters, pressure gauges, temperature controllers, and industrial control panels.
- Portable Devices: Handheld testers, fitness trackers, electronic scales, and wearable medical monitors.
- Automotive/Marine: Dashboard auxiliary displays, engine status indicators, and marine equipment readouts.
- Smart Home/IoT: Smart thermostats, humidity sensors, and home automation control panels.
