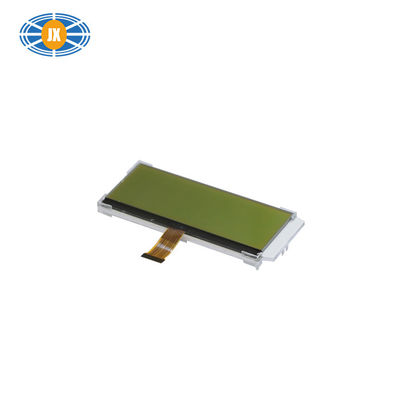

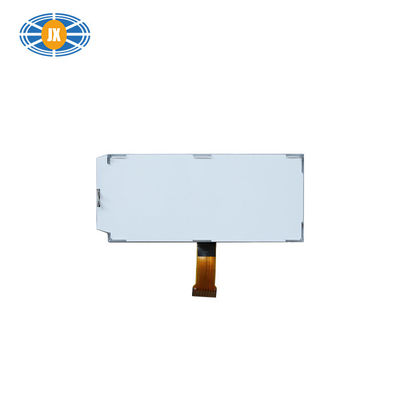

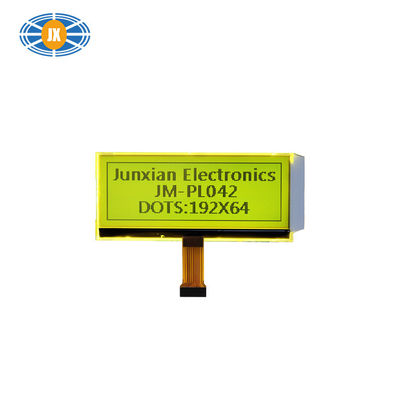

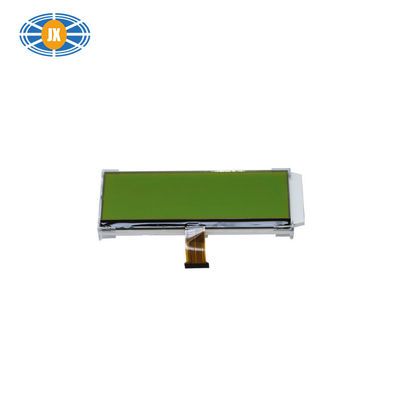

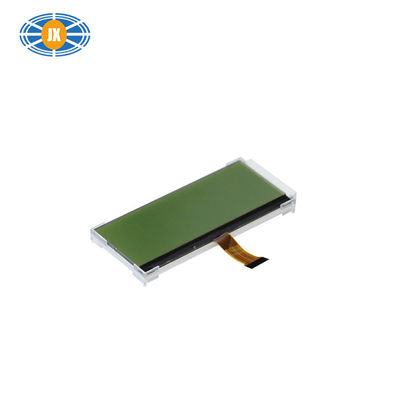

2 Inch 192×64 STN LCD Display With Negative Transmissive Blue COG Structure Lcd Module
Custom & OEM 2-Inch 192×64 STN LCD Display With Negative Transmissive Blue COG Structure Lcd Module
1. Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
2.Product Key Features and Advantages
(1) High-Resolution Display:
192×64 dot matrix STN LCD with negative transmissive blue (or yellow-green) mode for clear, high-contrast visuals in various lighting conditions.
(2) Compact & Durable Design:
COG (Chip On Glass) structure ensures a slim profile and reliable durability for space-constrained applications.
(3) Energy-Efficient Operation:
Low 3.0V working voltage, 12.0V VOP, and only 5.0mA current draw, ideal for battery-powered devices.
(4)Wide Viewing & Stable Performance:
6:00 o’clock viewing direction with 1/64 duty cycle and 1/9 bias ratio for consistent image quality across the screen.
(5) Harsh Environment Suitability:
Operates from -20°C to 70°C and stores from -30°C to 80°C, perfect for industrial and outdoor use.
(6)RoHS-Compliant & Versatile:
Environmentally safe design with options for blue or yellow-green display, meeting industrial standards.
3. Product technical parameters
| Keywords: |
2-inch monochrome LCD screen |
| Resolution: |
192×64 Pixels |
| LCD Interface: |
STN |
| LCD Size: |
116.20X49.25X10.30mm |
| Visual Area: |
104.00X39.00mm |
| Control driver: |
ST7525 |
| Surface Luminance: |
150cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
STN/negative display |
| perspectives: |
6.0'CLOCK |
| Driving voltage: |
3.0V |
| LED Lifetime: |
40,000 hours |
| Backlight: |
LED white /yellow |
| Display Color: |
yellowish green/blue |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

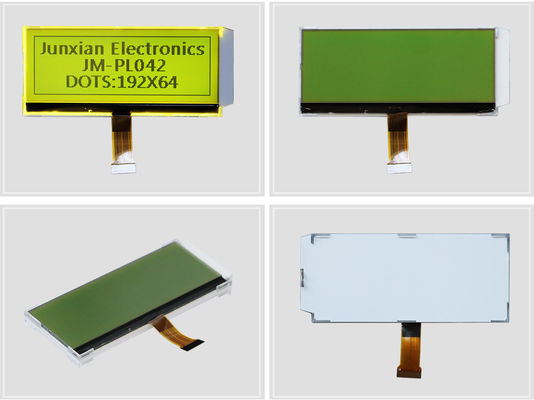

4. Product in details:
PS: This 2 inch 192×64 Monochrome LCD Screen is available for order with standard parameters. we have different specifications parameters of the 192*64 COG monochrome LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are some application fields of this COG Dot Matrix Display:
- Portable Devices: Handheld gadgets, remote controls, and wearable electronics.
- Medical Equipment: Blood glucose monitors, patient monitors, and diagnostic devices.
- Industrial Controls: Instrument panels, machine interfaces, and automation systems.
- Consumer Electronics: Home appliances, digital meters, and smart device accessories.
