OEM & Custom 240×64 Dots Monochrome LCD Module With Robust Design Durable Construction Lcd Screen

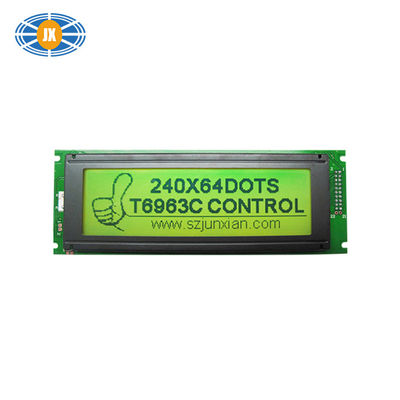

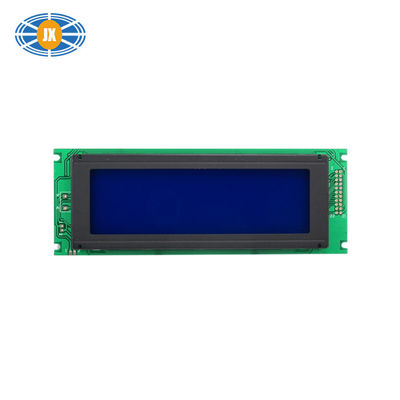

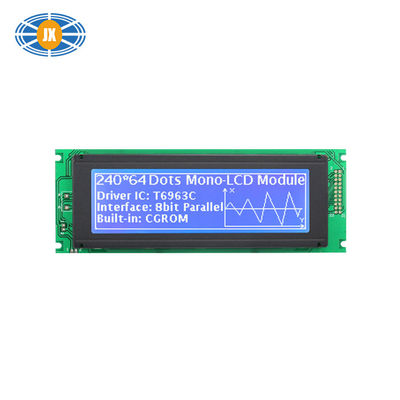

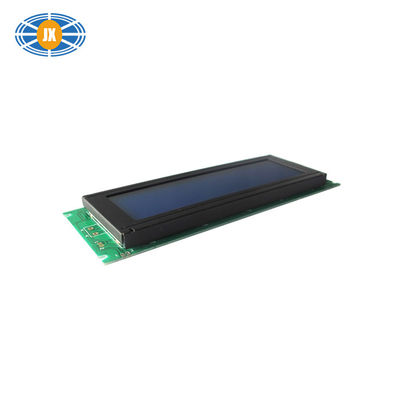

Designed for reliability and versatility, the JM24064A-GSBLWFA5 is a 240×64 dot-matrix LCD module ideal for industrial and embedded applications. Featuring a STN (Super Twisted Nematic) panel with a negative display mode, it offers crisp visuals in three customizable color combinations: yellow-green background with black text, blue background with white text, and gray background with black text, catering to diverse aesthetic and visibility needs.
1. Product Specifications and Features
(1) Key Specifications:
Display Type: 240×64 dots, STN (Blue), Transmissive/Negative
Viewing Direction: 6 o’clock (bottom-up)
Backlight: White side-mounted LED, 5.0V supply, 200mA current
Interface: 8-bit data bus MCU interface, compatible with T6963C driver IC
Dimensions: 180(L)×65(W)×13.5(H) mm, with a viewing area of 132×39 mm
Operating Temperature: -20°C to 70°C; Storage: -30°C to 80°C
Power Supply: Logic (VDD): 4.5–5.5V; LCD Driver (VOP): 12.3–13.3V (temperature-dependent)
(2) Core Features:
High Contrast & Readability: STN technology ensures clear visibility in various lighting conditions, enhanced by adjustable backlight intensity.
Robust Design: Built to withstand industrial environments with wide temperature/humidity tolerance (20–90% RH at <40°C).
Flexible Integration: 8-bit parallel interface enables seamless connectivity with micro controllers, supported by detailed timing diagrams and command sets (e.g., auto-read/write, cursor control).
Durable Construction: Reinforced PCB and anti-static design minimize operational risks, with strict quality standards for defect tolerance (e.g., ≤0.25mm spots).
2. Product technical parameters
| Keywords: |
5.2 inch Dot matrix LCD with monochrome characters |
| Resolution: |
240×64 Pixels |
| LCD Size: |
180.0×65.0×13.0mm |
| Visual Area: |
132.0×39.0mm |
| Control driver: |
RA6963C |
| Surface Luminance: |
200cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
blue membrane/yellowish green STN |
| Driving voltage: |
5.0V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white light/yellowish green |
| Display Color: |
blue/yellowish green |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

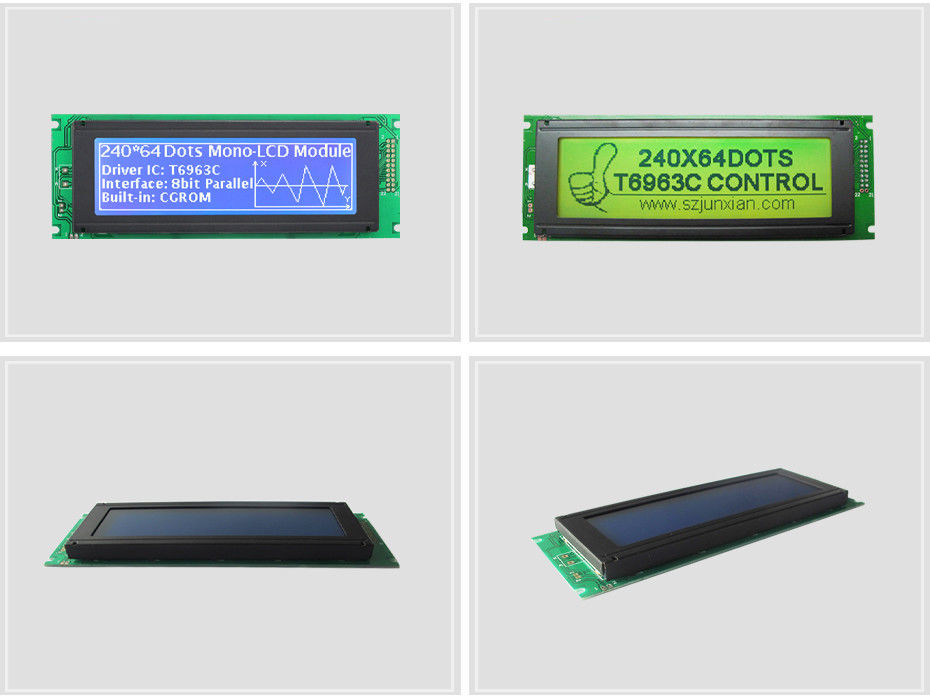

3. Product in details:
PS: This 5.2-inch 240×64 Dots Graphic LCD Display is available for order with standard parameters. We also offer 240×64 Dots Monochrome LCD Module in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are the recommended application areas for the Graphic LCD Display:
Industrial Control Panels & Instrumentation
- Medical Devices & Healthcare Monitors
- Smart Home/Smart Building Control Systems
- Embedded Systems & IoT Devices
- Handheld Equipment & Portable Electronics
- Automotive Dashboards & Vehicle Displays
- Consumer Electronics (e.g., appliances, POS machines)
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
Please Note
All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
