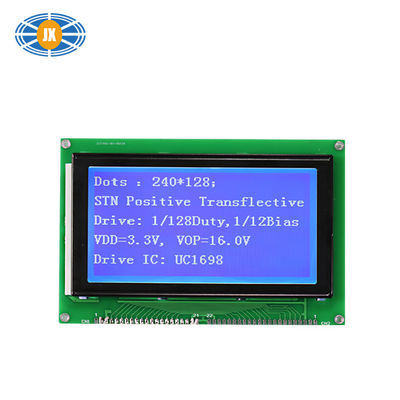

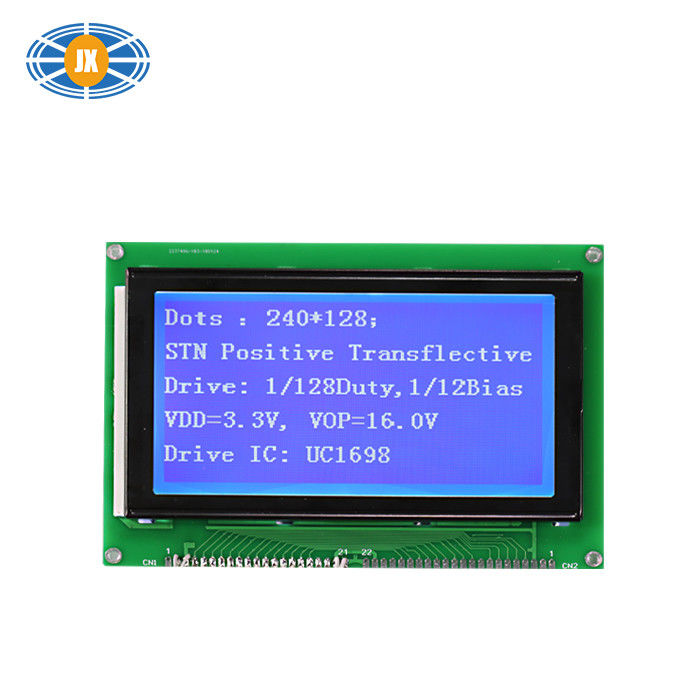

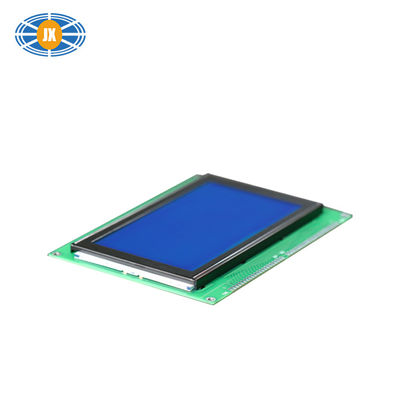

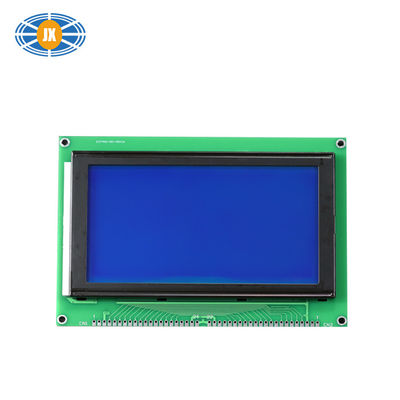

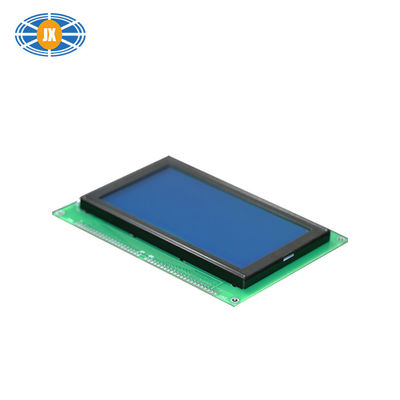

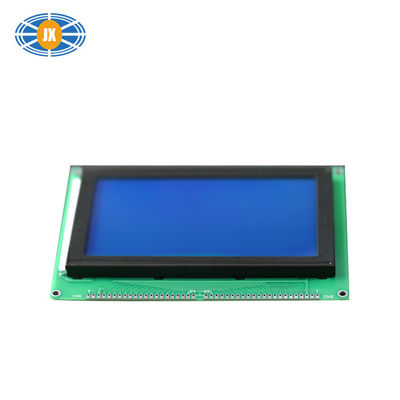

OEM & Custom 5.0-inch Monochrome LCD Screen With 240×128 STN Monochrome LCD For Industrial Control Panels
1. Product Specifications and Features
(1) Display Clarity & Ergonomics
240×128 - dot resolution STN (Blue) negative transmissive LCD ensures sharp visibility in diverse lighting.
6 o’clock viewing direction aligns with mainstream installation ergonomics.
(2) Backlight & Power Efficiency
White side - mounted LED backlight (5V DC, 150mA) provides stable, long - lasting brightness.
(3) Seamless Integration
8 - bit parallel data bus enables easy connection to MCUs; UC1698 IC guarantees reliable drive performance.
(4) Compact & Space - Friendly
Outline: 144×104×12.5mm (viewing area 114×64mm; active area 107.95×57.55mm) – ideal for space - constrained designs.
(5) Harsh Environment Ready:
Operating temp: -20℃~70℃; Storage temp: -30℃~80℃ – suits industrial and outdoor - adjacent applications.
(6) Quality Certified
ISO 9001:2008 compliance ensures rigorous quality control.
2. Product technical parameters
| Keywords: |
5.0-inch monochrome LCD screen |
| Resolution: |
240×128 Pixels |
| LCD Interface: |
8080-8bit |
| LCD Size: |
144.0×104.0×12.50mm |
| Visual Area: |
114.0×64.0mm |
| Control driver: |
UC1698U |
| Surface Luminance: |
200cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
STN |
| perspectives: |
6.0'CLOCK |
| Driving voltage: |
3.3V |
| LED Lifetime: |
40,000 hours |
| Backlight: |
LED white, yellow |
| Display Color: |
blue/yellowish green |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

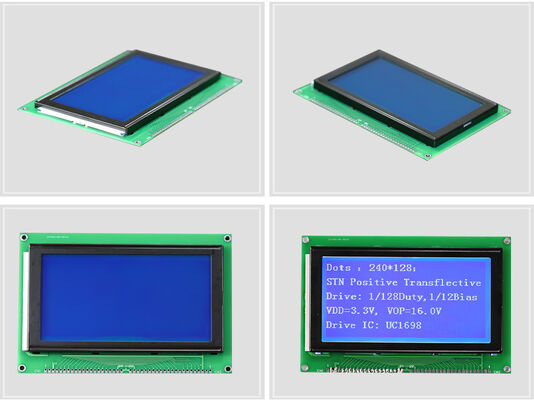

3. Product in details:
PS: This 5.0-inch 240×128 PixelsGraphic LCD Display is available for order with standard parameters. We also offer 240×128 Pixels Monochrome LCD Module in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are the recommended application areas for the Graphic LCD Display:
Industrial Control Panels & Instrumentation
- Medical Devices & Healthcare Monitors
- Smart Home/Smart Building Control Systems
- Embedded Systems & IoT Devices
- Handheld Equipment & Portable Electronics
- Automotive Dashboards & Vehicle Displays
- Consumer Electronics (e.g., appliances, POS machines)
