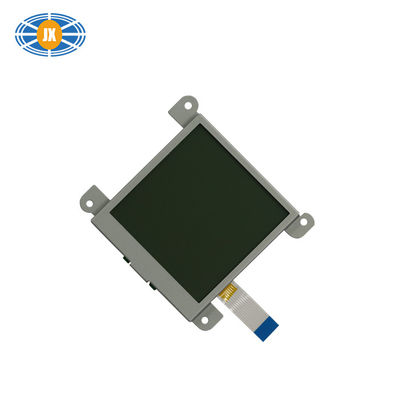

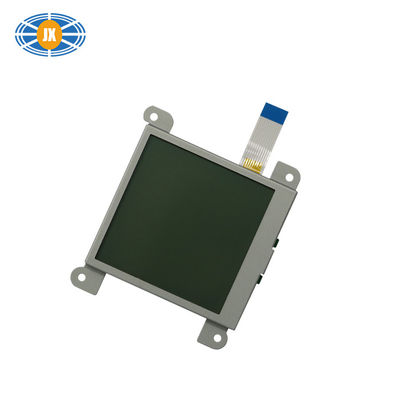

Custom & OEM 3-inch COG Monochrome LCD Monitor With160×160 FSTN Monochrome LCD Screen With COG for Industrial & Portable Devices
1. Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
2.Product Key Features and Advantages
(1) Compact 3-inch Design with High-Resolution Matrix:
160×160 dot matrix display in a sleek COG (Chip on Glass) structure, ensuring minimal thickness and space-saving for compact devices.
(2) FSTN Gray Screen with Transflective Technology:
Integrates STN’s high contrast ratio and low power consumption, allowing clear visibility in both ambient light (transflective design) and backlit environments.
(3) Reliable White Backlight:
Operates at 3.3V with 70–90mA (100mA max), delivering consistent brightness for optimal readability in low-light conditions.
(4) Wide Temperature Performance:
Withstands -40°C to 70°C operating and -40°C to 80°C storage ranges, making it ideal for harsh industrial or outdoor applications.
(5) Energy-Efficient SPI Interface:
10P SPI serial interface ensures simple integration and low power consumption, suitable for battery-powered devices.
(6) RoHS Compliance & Durability:
Meets environmental standards, paired with a 6 o’clock optimal viewing angle for versatile installation in various equipment.
3. Product technical parameters
| Keywords: |
3.0-inch monochrome LCD screen |
| Resolution: |
160×160 Pixels |
| LCD Interface: |
4bit SPI |
| LCD Size: |
86.36X76.10X5.8mm |
| Visual Area: |
60.00X60.00mm |
| Control driver: |
ST75161 |
| Surface Luminance: |
150cd/m2 |
| Operating Temp: |
-40～＋70℃ |
| Storage Temp: |
-40～＋80℃ |
| Display Type: |
outstanding/FSTN |
| perspectives: |
6.0'CLOCK |
| Driving voltage: |
3.3V |
| LED Lifetime: |
40,000 hours |
| Backlight: |
LED white |
| Display Color: |
grayish film |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

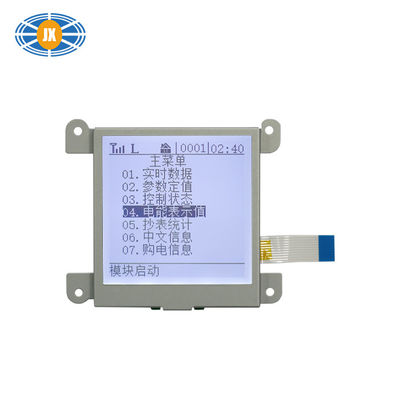

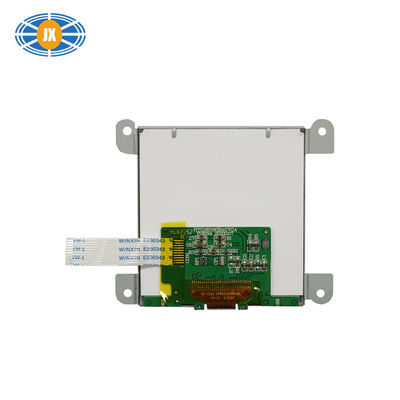

4. Product in details:
PS: This 3-inch COG monochrome LCD(160*160) is available for order. we have different specifications parameters of the 3-inch COG monochrome LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are some application fields of this 3 - inch COG Dot Matrix Display:
(1) Mobile Phones: It can be used for displaying call information, text messages, and various application interfaces.
(2)Tablets: Suitable for presenting e - books, video playback, and graphic - rich apps.
(3) Wearable Devices: Such as smartwatches and fitness trackers, for showing health data and notifications.
(4) Digital Cameras: Displays photo previews, camera settings, and menu options.
(5) Industrial Control Panels: Used to show operation status, parameter settings, and alarm information.
(6) Smart Home Systems: Can display device status, control interfaces, and energy consumption data.
(7) Portable Game Consoles: Presents game graphics, scores, and menu screens.
(8) MP3 Players: Shows song information, playlists, and equalizer settings.
