Product Details:
|
Product Name: | 3.3 -inch Monochrome LCD Screen | Lcd Interface: | SPI |
---|---|---|---|
LCD Size: | 71.50x48.20x5.3mm | Visual Area: | 62.20x46.20mm |
Display Type: | STN/outstanding | Surface Luminance: | 150cd/m2 |
Display Color: | Grayish Film | Backlight: | LED White Light |
LED Lifetime: | 40,000 Hours | Driving Voltage: | 2.8~3.3V |
Name: | Graphic LCD Display | ||
Highlight: | 2.9 Inch Monochrome LCD Display,Monochrome LCD Display 240×160,3.0V COG Dot Matrix Display |

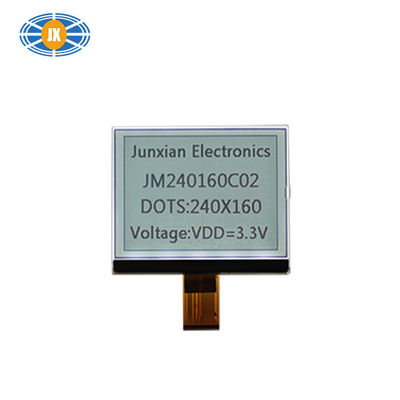

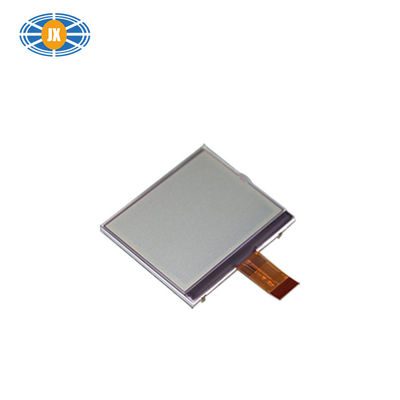

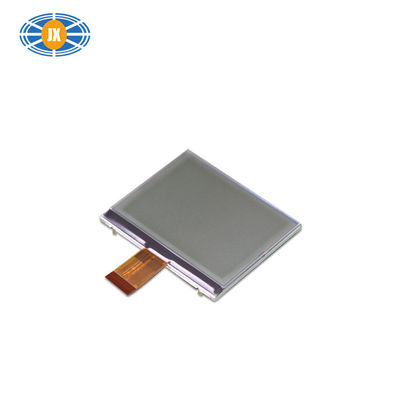

Custom & OEM2.9-Inch COG Monochrome LCD With 240×160 4.5mm Slim 3.0V COG Dot Matrix Display For Portable Devices
1. Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
2.Product Key Features and Advantages
(1) Versatile STN Display Performance
The 240×160 dot matrix STN (gray) transflective/positive display ensures sharp contrast with a white background and black characters. Optional blue/yellow-green backlight and LCD color configurations allow customization for diverse application needs (e.g., blue for medical devices, yellow-green for industrial visibility).
(2) Stable Driving & Efficient Power
Powered by the UCI628C control IC, paired with a 1/160 duty ratio and 1/13 bias for precise pixel control. Operates at 3.0V VDD (low-power compatible) and 18.5V VOP, ensuring stable performance in embedded systems and portable devices.
(3)Tailored Backlight Flexibility
Equipped with 5 white LEDs (75mA current, 3.0V voltage) for uniform illumination. Optional color backlights (blue/yellow-green) enable optimized visibility in specific environments (e.g., outdoor glare, indoor low-light settings).
(4) Compact COG-Enabled Design
Ultra-slim outline (66.00×55.00×4.50mm) leverages COG (Chip-On-Glass) integration to save space, ideal for handheld testers, wearable modules, or compact industrial panels.
(5)Harsh Environment Reliability
Operates in -20°C~70°C (stores in -30°C~80°C), withstanding extreme temperatures for outdoor installations, industrial machinery, or automotive peripherals. Ensures long-term functionality in rugged settings.
Keywords: | 3.3-inch monochrome LCD screen |
Resolution: | 240×160 Pixels |
LCD Interface: | SPI |
LCD Size: | 71.50x48.20x5.3mm |
Visual Area: | 62.20x46.20mm |
Control driver: | UC1628C |
Surface Luminance: | 150cd/m2 |
Operating Temp: | -20℃~+70℃ |
Storage Temp: | -30℃~+80℃ |
Display Type: | STN/outstanding |
perspectives: | 6.0'CLOCK |
Driving voltage: | 2.8~3.3V |
LED Lifetime: | 40,000 Hours |
Backlight: | LED white light |
Display Color: | grayish film |
Certificate: | GB/T19001-2016/IS09001:2015 |
Compliance: | REACH & RoHS Compliant |
PS: This 3.3 inch 240×160 Monochrome LCD Screen is available for order with standard parameters. we have different specifications parameters of the 240*160 COG monochrome LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
Here are some application fields of this COG Dot Matrix Display:
- Industrial Meters/Instruments: Power meters, pressure gauges, temperature controllers, and industrial control panels.
- Portable Devices: Handheld testers, fitness trackers, electronic scales, and wearable medical monitors.
- Automotive/Marine: Dashboard auxiliary displays, engine status indicators, and marine equipment readouts.
- Smart Home/IoT: Smart thermostats, humidity sensors, and home automation control panels.
