Product Details:
|
Name: | Graphic LCD Display | Driving Voltage: | 5V |
---|---|---|---|
Resolution: | 122×32 Pixels | LCD Size: | 84.0x44.0x14.0mm |
Visual Area: | 60.0x18.0mm | Control Driver: | SBN1661G |
Surface Luminance: | 190cd | Touch Screen:: | Without Touch Screen (Customizable) |
Display Color: | Blue/yellow-green | Backlight: | LED White Light/yellow-green |
LED Lifetime: | 40,000 Hours | ||
Highlight: | 5V LCD Display Rugged,High Contrast Ratio LCD Display Rugged,Mechanical Graphic LCD Screen |
1.5 inch Monochrome LCD Module – High-Performance Display Solution

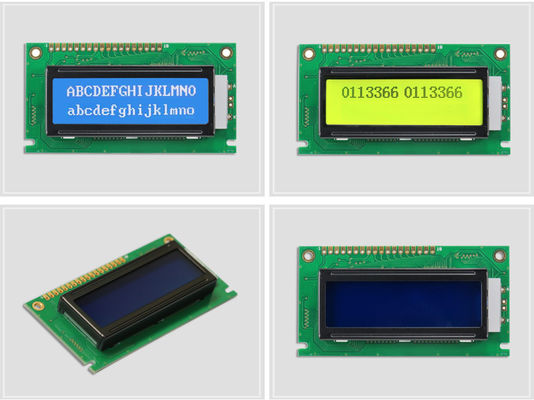

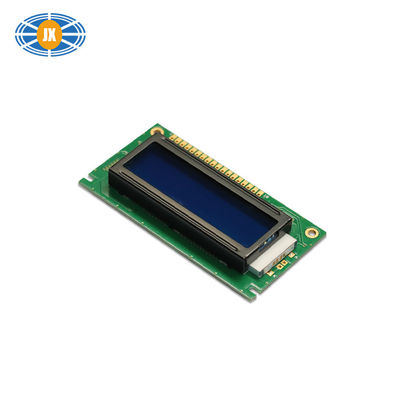

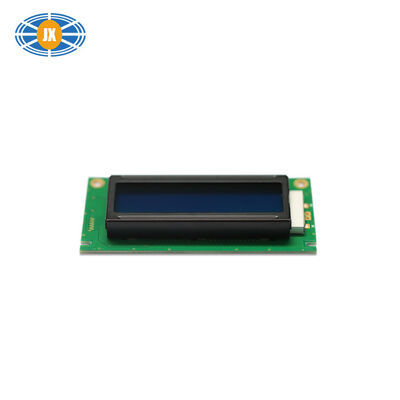

Designed for reliability and versatility, the JM12232B-GSBLWNB5 is a 122×32 dot-matrix monochrome LCD module ideal for industrial, medical, and embedded applications. Built with a STN (Blue) transmissive/negative LCD type, it delivers sharp contrast and clear visibility with a 6 o’clock viewing direction. The module supports multiple backlight configurations to suit diverse needs:

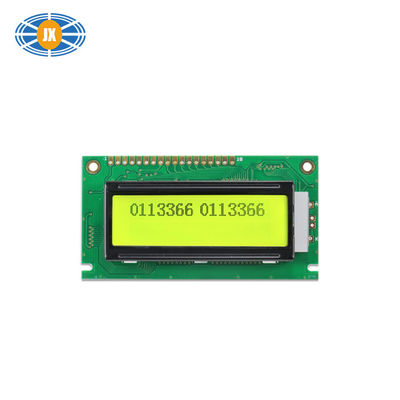

Yellow-green LED backlight for high-visibility black text on a vibrant yellow-green background.

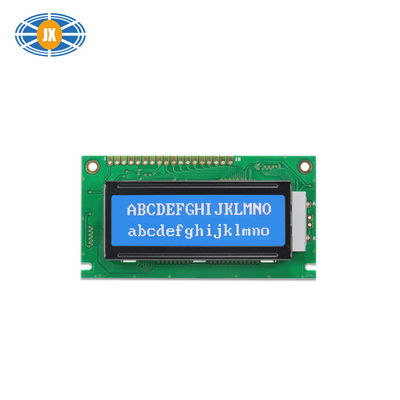

White LED backlight enabling crisp white text on a blue background or black text on a neutral gray background.
(1) Core Features:
High contrast ratio for clear readability in various lighting conditions.
Flexible backlight options for customizable display aesthetics.
Rugged mechanical design with grounded metal frames and ESD protection.
Low power consumption, suitable for battery-powered devices.
This module combines durability, ease of integration, and visual flexibility, making it an optimal choice for applications requiring reliable monochrome display performance.
(2) Key Specifications:
Display Technology: 1/32 duty, 1/5 bias, with a driver voltage (Vop) of 4.7V and logic supply (VDD) of 5.0V.
Physical Dimensions: Compact 84.0×44.0×14.0mm outline, featuring a 60.0×18.0mm viewing area and 0.40×0.45mm dot size.
Electrical Range: Operates at -20°C to 70°C (storage: -30°C to 80°C), with robust voltage tolerance (VDD: 4.5–5.5V).
Interface: Compatible with 6800/8080 series microcontrollers, using an 8-bit parallel data bus (DB0–DB7) for seamless integration.
Driver IC: Powered by the SBN1661G, ensuring stable performance and low power consumption (backlight: 40mA at 5.0V).
Keywords: | 1.5-inch monochrome LCD screen |
Resolution: | 122×32 Pixels |
LCD Size: | 84.0x44.0x14.0mm |
Visual Area: | 60.0x18.0mm |
Control driver: | SBN1661G |
Surface Luminance: | 190cd |
Operating Temp: | -20℃~+70℃ |
Storage Temp: | -30℃~+80℃ |
Display Type: | STN blue, yellow-green |
Driving voltage: | 5V |
LED Lifetime: | 40,000 hours |
Backlight: | LED white light/yellow-green |
Display Color: | blue/yellow-green |
Certificate: | GB/T19001-2016/IS09001:2015 |
Compliance: | REACH & RoHS Compliant |
PS: This 1.5 -inch Graphic LCD Display is available for order with standard parameters. We also offer 122×32 dot-matrix monochrome LCD screen in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
Here are the recommended application areas for the Graphic LCD Display:
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
Please Note
All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
