Custom & OEM 3V COG Monochrome LCD Monitor COG Dot Matrix Display Fit For Consumer Electronics Portable Devices
1. Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
2.Product Key Features and Advantages
(1) Reliable Drive IC:Powered by the Sitronix ST7032 IC, this 16×2 monochrome character LCD display module guarantees stable operation, minimizing the risk of malfunctions and ensuring consistent performance over time.
(2) Energy-Efficient Power Supply: Operating at a low 3.0V power source, it stands out for its energy efficiency. This makes it an ideal choice for battery-powered devices, extending battery life, and is adaptable to various power configurations, enhancing its versatility.
(3) Superior Display Quality: Delivers high-clarity character display with a uniformly colored background, ensuring information is easily readable. Its programmable display direction offers flexibility to meet different installation and viewing requirements. Supporting the display of English characters and graphic symbols, it caters to a wide range of informational display needs. Moreover, its straightforward programming simplifies operation, reducing the learning curve for users.
(4)Convenient Interface: Fitted with an SPI serial port, which can be effortlessly configured through both software and hardware. This enables seamless communication with other devices, facilitating quick integration into diverse systems and projects.
(5) Wide Temperature Adaptability: Can function flawlessly in environments ranging from -20°C to 70°C and be safely stored between -30°C and 80°C. This broad temperature tolerance makes it suitable for use in various indoor and outdoor settings, from cold storage facilities to sunny outdoor applications.
3. Product technical parameters
|
Parameter
|
Description
|
|
Product Type
|
2.26 - inch monochrome LCD screen
|
|
Dot Matrix
|
1602
|
|
Overall Dimensions
|
73.00mmX26.00mm X6.20mm
|
|
Viewing Area Dimensions
|
64.60mmX16.00mm
|
|
LED Lifetime
|
40,000 hours
|
|
Display Mode
|
Blue/STN/Negative Display
|
|
Backlight
|
White Light
|
|
Interface
|
SPI Serial Port
|
|
Control Driver
|
ST7032
|
|
IC Packaging Method
|
Chip - on - Glass (COG)
|
|
Driving Voltage
|
3.0V
|
|
Operating Temperature
|
-20 ~ +70°C
|
|
Storage Temperature
|
-30 ~ +80°C
|
|
Viewing Angle
|
12H
|
4. Product in details:

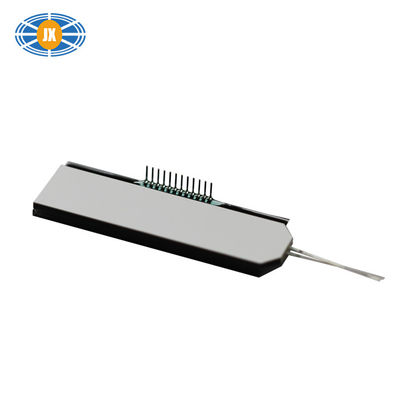

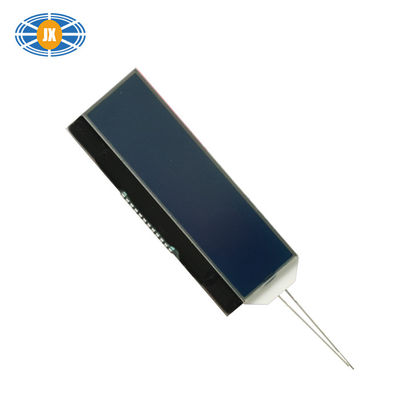

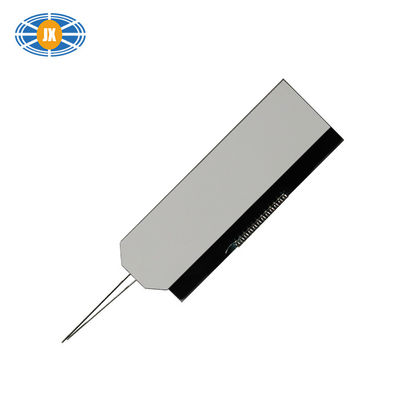

PS: This 2.26-inch COG monochrome LCD is available for order. we have different specifications parameters of the 2.26-inch COG monochrome LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are some application fields of this COG Dot Matrix Display:
Consumer Electronics: Ideal for use in calculators, digital clocks, and small home appliances, providing clear and concise information display.
Industrial Equipment: Well-suited for control panels, meters, and monitoring devices in industrial settings, ensuring reliable operation under diverse working conditions.
Portable Devices: Perfect for handheld devices like data loggers, portable terminals, and medical monitoring equipment, thanks to its low-power consumption and compact size.
Automotive Displays: Can be used for dashboard indicators, climate control displays, and other in-car informational displays, withstanding the temperature fluctuations within vehicles.
