Custom & OEM 2-inch COG Monochrome LCD Monitor COG Dot Matrix Display Fit For Wearable Devices from High Resolution Display factory
1. Definition and Principle
COG Dot Matrix Display refers to a type of display technology that uses a Chip - on - Glass (COG) packaging method for dot - matrix - style displays. Here is a detailed introduction:
Principle
It consists of a matrix - arranged array of pixels, and each pixel can be independently controlled to display different colors or grayscale levels. By controlling the on - off state and brightness of these pixels, various images, text, and graphics can be presented.
2.Product Key Features and Advantages
(1)Superior Readability in Sunlight:
With FSTN display type and enhanced sunlight-readable features, including an optimized anti-glare surface treatment, it ensures crystal-clear visibility even under direct sunlight (≥10,000 lux ambient light), perfect for outdoor applications.
(2) Optimal Resolution & Size:
Boasts a 192×64 pixels resolution on a 2 - inch monochrome screen. Its compact dimensions of 56.20×23.24×3.30mm with a 47.50×17.49mm view area make it highly suitable for space - constrained devices.
(3)Versatile Interfaces:
Equipped with both Parallel and Serial interfaces (UC1604c driver), offering flexibility for seamless integration with various systems and meeting different technical requirements.
(4) Long - lasting & Bright Backlight:
Features a 150cd/m² LED white backlight with an impressive 40,000 - hour lifespan, providing consistent and reliable illumination over extended periods.
(5) Wide Operating Range:
Operates stably at 3.3V within a temperature range of -20℃~+70℃ and can be stored safely between -30℃~+80℃, ensuring durability in diverse environmental conditions.
(6) High - standard Compliance:
Complies with REACH/RoHS regulations, ensuring environmental friendliness, and adheres to GB/T19001 - 2016/ISO9001:2015 quality management standards, guaranteeing top - notch quality.
3. Product technical parameters
| Keywords: |
2-inch monochrome LCD screen |
| Resolution: |
192×64 Pixels |
| LCD Interface: |
Parallel/Serial |
| LCD Size: |
56.20X23.24X3.30mm |
| Visual Area: |
47.50x17.49mm |
| Control driver: |
UC1604c |
| Surface Luminance: |
150cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
FSTN |
| perspectives: |
6.0'CLOCK |
| Driving voltage: |
3.3V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white light |
| Display Color: |
ash-colored |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

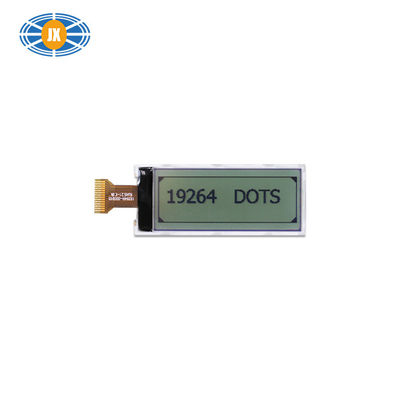

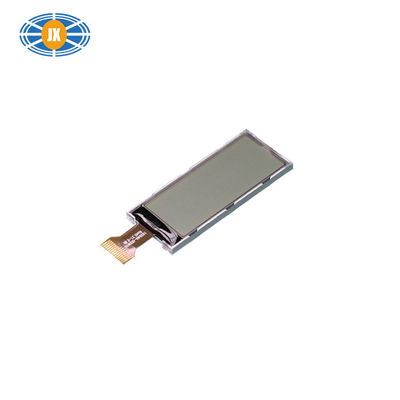

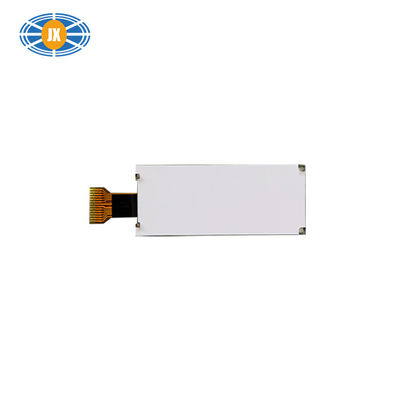

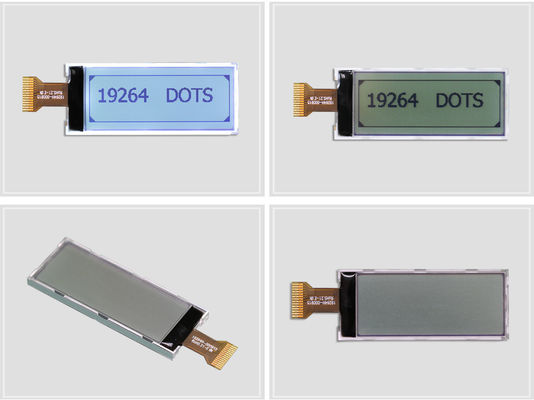

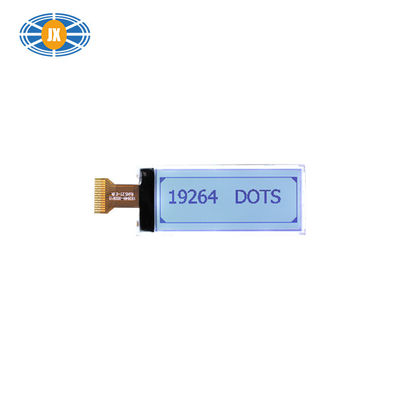

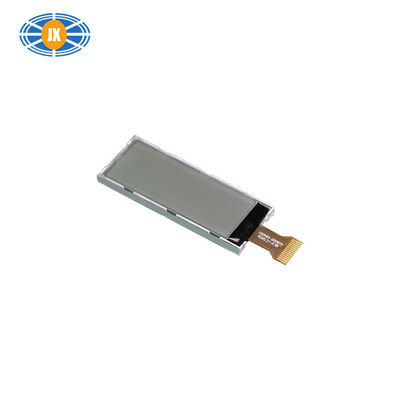

4. Product in details:
PS: This 2-inch COG monochrome LCD is available for order. we have different specifications parameters of the 2-inch COG monochrome LCD monitor,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Here are some application fields of this 2 - inch COG Dot Matrix Display:
(1) Mobile Phones: It can be used for displaying call information, text messages, and various application interfaces.
(2)Tablets: Suitable for presenting e - books, video playback, and graphic - rich apps.
(3) Wearable Devices: Such as smartwatches and fitness trackers, for showing health data and notifications.
(4) Digital Cameras: Displays photo previews, camera settings, and menu options.
(5) Industrial Control Panels: Used to show operation status, parameter settings, and alarm information.
(6) Smart Home Systems: Can display device status, control interfaces, and energy consumption data.
(7) Portable Game Consoles: Presents game graphics, scores, and menu screens.
(8) MP3 Players: Shows song information, playlists, and equalizer settings.
