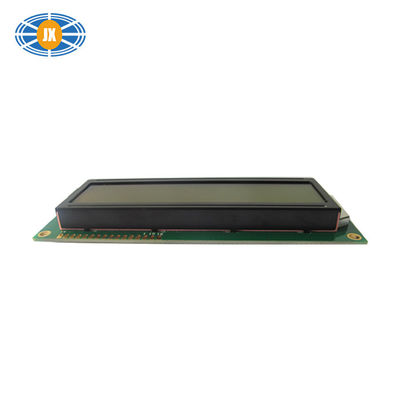

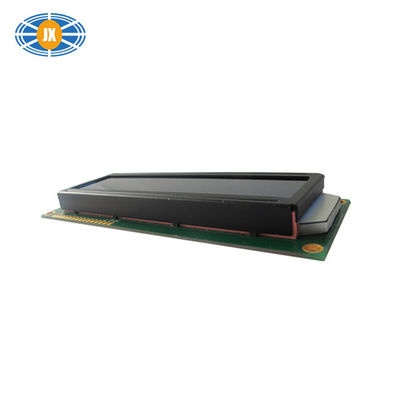

Custom 16×2 Standard Alphanumeric Display 16-PIN Flexible Design LCD Modules With Multi-Color Backlight from Lcd factory
1. Definition
A Character LCD (Liquid Crystal Display) module is a display device designed to show alphanumeric characters, symbols, and simple icons. It uses predefined character patterns stored in its memory to form text-based information, typically arranged in rows and columns. Unlike graphic LCDs, character LCDs focus on presenting text rather than complex images or graphics.
2.Product Features and advantages
(1) 16×2 Standard Alphanumeric Display:
Features a large-standard character library, displaying 16 characters per line (2 lines total), ideal for clear text-based information display in compact setups.
(2) Dual Display Color & Multi-Backlight Options:

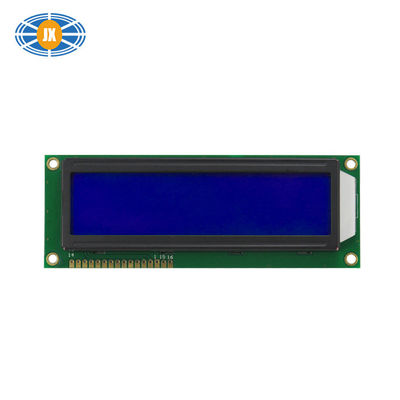

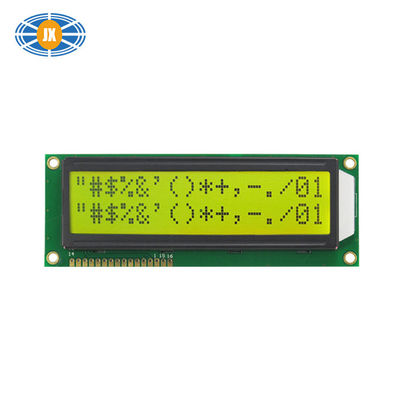

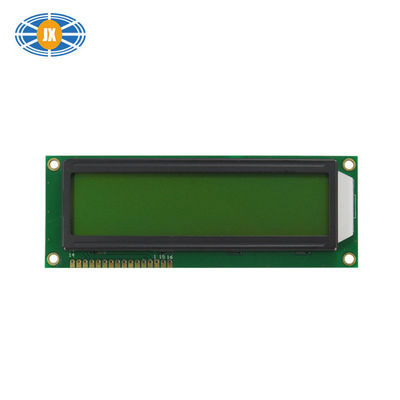

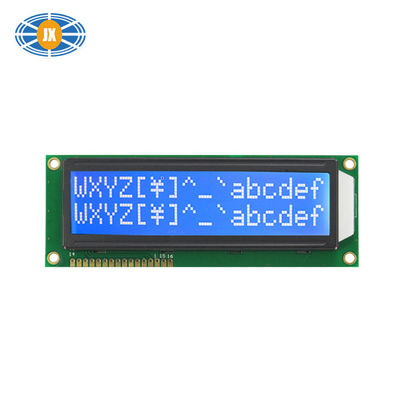

Offers blue or yellow-green display panels, paired with red, amber, white, or yellow-green backlighting to enhance visibility and match diverse aesthetic/operational needs.
(3)16-PIN Flexible Design:
Standard 16-pin configuration ensures easy integration into various applications, from embedded systems to DIY projects, with reliable connectivity.
(4) Wide Size Range & Backlight Variety:
Available in 8x2 to 40x4 sizes, all with backlight colors including white, blue, yellow, red, green, and amber, catering to both small-scale and large-format display requirements.
(5) Multi-Interface Compatibility:
Supports 6800, SPI, and I2C interfaces, enabling seamless integration with different microcontrollers and systems for customizable solutions.
(6) VATN Technology for Enhanced Visibility:
Optional VATN displays deliver wide viewing angles and high contrast, ensuring crisp readability from multiple perspectives in industrial, commercial, or consumer electronics.
3. Product technical parameters
| Keywords: |
2.4inch Dot matrix LCD with monochrome characters |
| Resolution: |
16×2 Pixels |
| LCD Size: |
122.0x44.0x12.0mm |
| Visual Area: |
99.0x24.0mm |
| Control driver: |
SPLC780D |
| Surface Luminance: |
100cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
yellow-green/STN |
| Driving voltage: |
5.0V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white, blue, yellow, red, green and amber |
| Display Color: |
blue/yellowish green |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

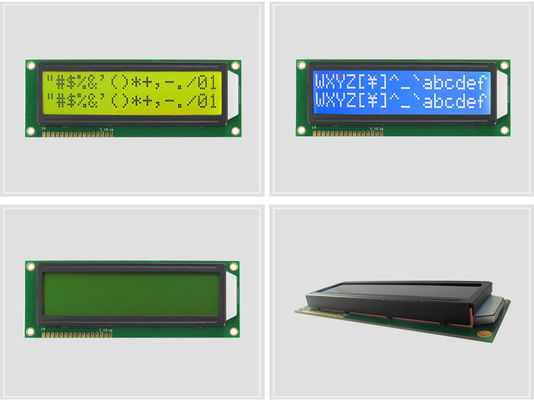

4. Product in details:
PS: This 16×2 Standard Alphanumeric Display support customized,you can ask us for a complete data sheet and engineer technical support, at the same time, we have different specifications parameters of the 16*2LCD,Have any customize requirements, please feel free to Contact Us.
5. Application fields
Here are the recommended application areas for the Character LCD Modules:
- Industrial: Automotive application, Digital meter, UPS
- Medical: medical device & medical equipment
- Home appliance: audio, coffee machine, microwave oven
- Automobile: dashboard, car audio
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
Please Note
All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
