Custom 3.3V/5.0V Character LCD Modules Monochrome Characters Screen With Low Price and Multiple Sizes
1. Definition
A Character LCD (Liquid Crystal Display) module is a display device designed to show alphanumeric characters, symbols, and simple icons. It uses predefined character patterns stored in its memory to form text-based information, typically arranged in rows and columns. Unlike graphic LCDs, character LCDs focus on presenting text rather than complex images or graphics.
2. Product Features
2.1 Diverse Sizes & Specifications: Available in various sizes including 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, and 40x4 LCD options, catering to different display requirements.
2.2 Rich Color Choices: Comes in blue and yellow - green base colors, with backlighting options of red, amber, red, white, blue, yellow, green, and amber for enhanced visibility.
2.3 Standard Form Factor: Features a form factor of 98 x 60 mm, making it suitable for a wide range of installations.
2.4 Multiple Interface Options: Offers 6800, SPI, and I2C interfaces to meet diverse customer needs for seamless integration.
2.5 Specialized Display Type: Provides VATN displays with a wide viewing angle and high contrast, ideal for various applications.
2.6 16 - PIN Design: A 16PIN product, which is convenient for circuit connection and assembly.
3. Advantages
- Cost-Effective: More affordable compared to graphic LCDs, making them a budget-friendly choice for applications where simple text display suffices.
- Ease of Use: Simple programming and operation; developers can quickly implement text display functions without complex graphics processing.
- Reliability: Long lifespan and stable performance, with resistance to shock and vibration, reducing maintenance needs.
- Widely Available: A mature technology with numerous manufacturers, ensuring easy access to components and technical support.
4. Product technical parameters
| Keywords: |
2.5inch Dot matrix LCD with monochrome characters |
| Resolution: |
20×4 Pixels |
| LCD Size: |
98.0x60.0x13.0mm |
| Visual Area: |
76.0x26.0mm |
| Control driver: |
ST7066U |
| Surface Luminance: |
100cd/m2 |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
blue membrane/STN |
| Driving voltage: |
3.3V/5.0V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white light |
| Display Color: |
blue/yellowish green |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

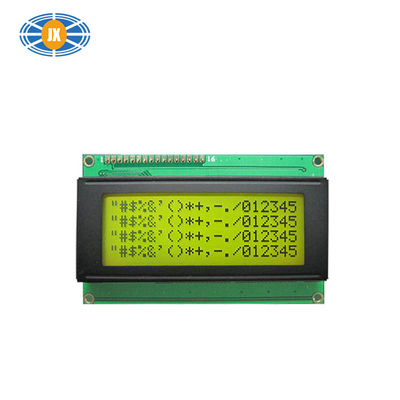

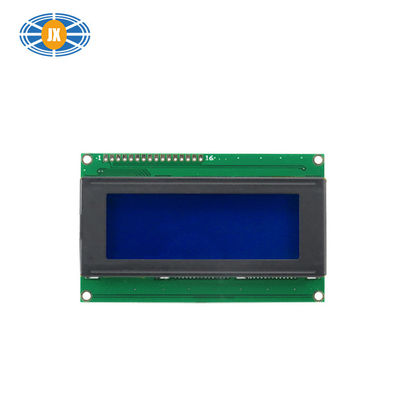

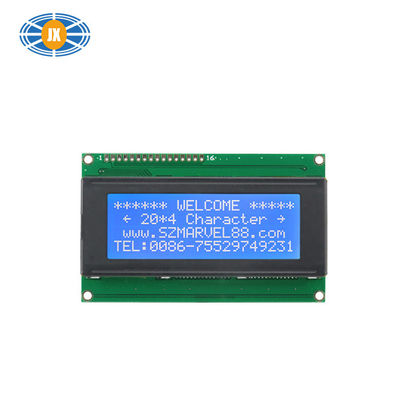

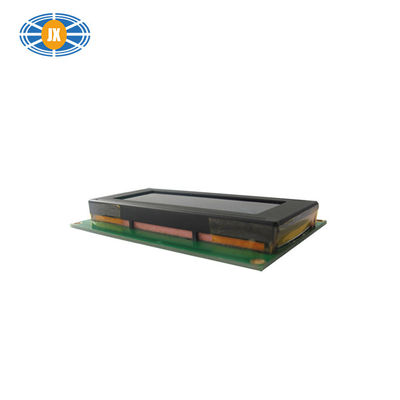

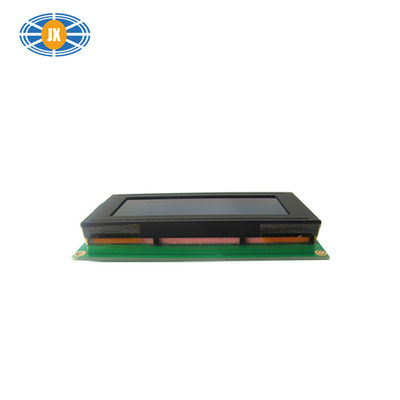

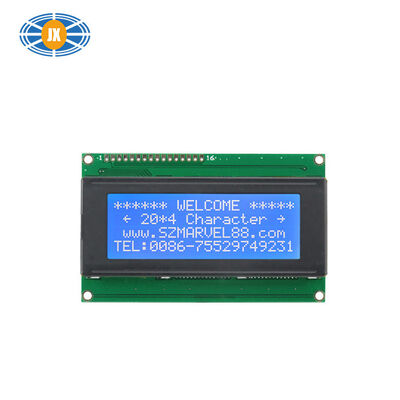

5. Product in details:
PS: This Character LCD Modules is available for order with standard parameters. we have different specifications parameters of the 20*4 Pixels LCD,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
6. Application fields
Here are the recommended application areas for the Character LCD Modules:
Industrial: Automotive application, Digital meter, UPS
Medical: medical device & medical equipment
Home appliance: audio, coffee machine, microwave oven
Automobile: dashboard, car audio
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
Please Note
All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
