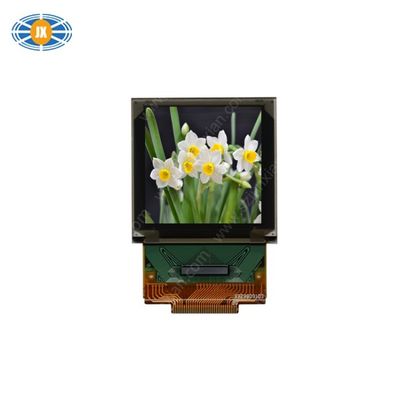

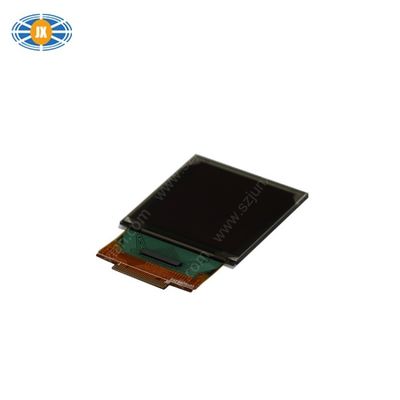

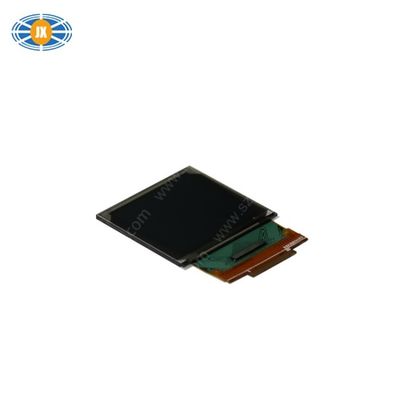

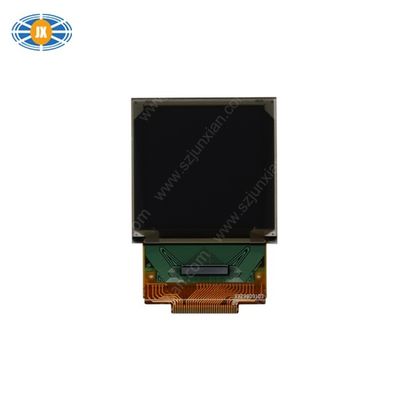

Customized1.46 Inch Color OLED Display With An 8 Bit Parallel LCD Interface 30 Pins 128×128 Lcd Screen
What is OLED Display Modules?
An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied. OLED Display Modules are widely used in various electronic devices due to their excellent characteristics, such as high contrast ratios, wide viewing angles, fast response times, and the ability to display vibrant and accurate colors. They can be found in applications like smartphones, tablets, televisions, wearable devices, and automotive displays. Additionally, OLED Display Modules often come with integrated driver circuits to control the operation of the OLED pixels and interface with the host device.
1. Product Features
(1) Self - Emissive Technology:
As an OLED display, it utilizes self - emissive technology. Each pixel emits its own light, eliminating the need for a backlight and enabling thinner designs, faster response times, and better power efficiency.
(2) Colorful Display:
It is a full - color display, providing a rich and vibrant color palette to meet the diverse needs of various applications, rather than having limited color options like specific single colors.
(3) Compliance:
Compliant with REACH & RoHS standards and holding the GB/T19001 - 2016/IS09001:2015 certificate, it ensures high - quality manufacturing and environmental friendliness.
2. Product Specifications
Interface: Comes with an 8 - bit parallel LCD interface for seamless connectivity.
Size: Compact in design, measuring 33.5X49.83X1.61mm, with a visual area of 26.279X26.284mm.
Pin Number: Equipped with 30 pins to guarantee reliable electrical connections.
Temperature Range: Capable of operating within - 40℃ to +70℃ and can be stored between - 40℃ to +85℃.
3.Key Parameters
Resolution: It features a crisp 128×128 Pixels resolution, delivering clear and detailed imagery.
Viewing Angles: With all - around viewing angles of 80/80/80/80, it ensures excellent visibility from every direction.
Contrast Ratio: Boasting an impressive 2000:1 (Dark Room Contrast) ratio, it offers vivid colors and deep blacks for a truly immersive visual experience.
4. Product technical parameters
| Keywords: |
1.46-inch Monochrome Dot Matrix OLED |
| Resolution: |
128×128 Pixels |
| LCD Interface: |
8-bit for parallel |
| LCD Size: |
33.5X49.83X1.61mm |
| Visual Area: |
26.279X26.284mm |
| Pin Number: |
30 Pins |
| Control driver: |
SSD1351 |
| Operating Temp: |
-40℃～＋70℃ |
| Storage Temp: |
-40℃～＋85℃ |
| Display Type: |
outstanding |
| perspectives: |
All Viewing Angles 80/80/80/80 |
| Backlight: |
white light |
| Display Color: |
colorful |
| Contrast Ratio: |
2000 : 1 ( Dark Room Contrast ) |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

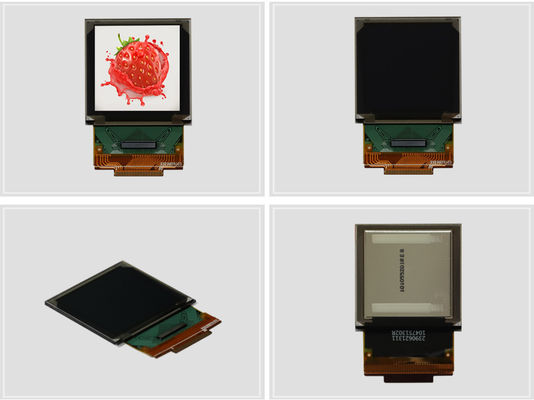

5. Product in details:
PS: This 1.46 -inch (128×128Pixels)OLED LCD display module is available for order with standard parameters. We also offer 128×128 OLED LCDs resolution in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
6. Application fields
- Smart Wearables: Fitness trackers, smart watches, and health monitors requiring compact, high-contrast displays.
- Industrial Meters & Instruments: Control panels, diagnostic tools, and real-time data visualization in harsh environments.
- IoT & Consumer Electronics: Home automation interfaces, portable devices, and smart home appliances needing space-efficient, low-power displays.
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). 0.42 to 5.5 inch OLED screen& OLED displays. Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
Please Note
All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
