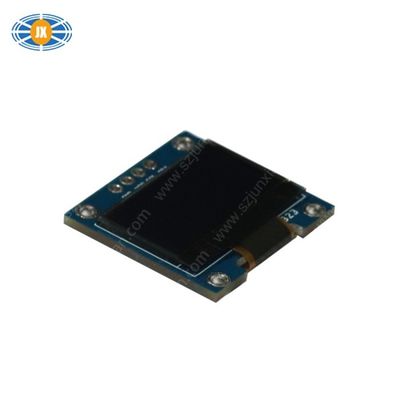

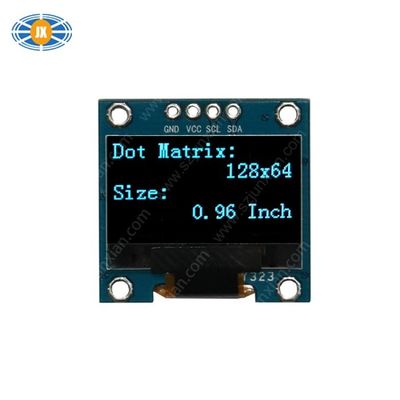

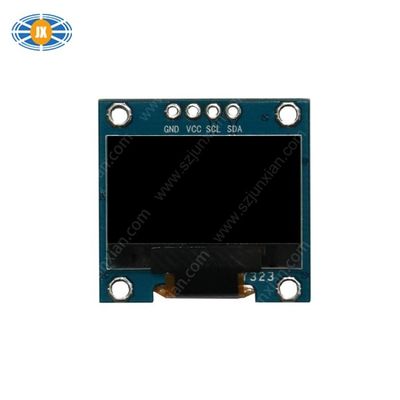

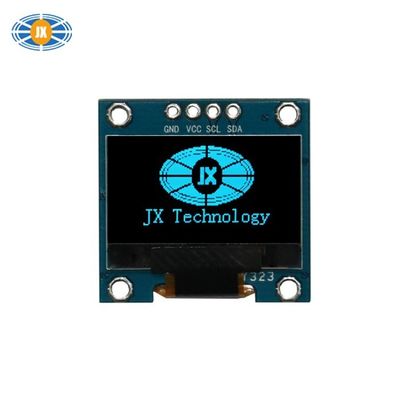

128×64 Dot Matrix 0.96-Inch OLED Display With SSD1315Z Drive For Industrial & Consumer Use
Custom & OEM 0.96-inch OLED Display with Blue/White/Bicolor High Contrast Low Power lcd monitor for Wearables & Gadgets
What is OLED Display Modules?
An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied. OLED Display Modules are widely used in various electronic devices due to their excellent characteristics, such as high contrast ratios, wide viewing angles, fast response times, and the ability to display vibrant and accurate colors. They can be found in applications like smartphones, tablets, televisions, wearable devices, and automotive displays. Additionally, OLED Display Modules often come with integrated driver circuits to control the operation of the OLED pixels and interface with the host device.
1. Product Features and Advantages
(1) Vibrant Color Options:
Available in blue, white, and bicolor variants, this 0.96-inch OLED display allows you to select the perfect hue to match your application's aesthetic and visibility requirements.
(2) Stunning Visuals:
Leveraging OLED technology with self-illuminating pixels, it delivers an ultra-high contrast ratio, ensuring deep blacks and vivid colors. The 128×64 dot matrix provides sharp and detailed graphics and text, making it ideal for both low-light and outdoor use.
(3) Space-Efficient Design:
With a diagonal size of 0.96 inches and a slim PCB profile (measuring 22.2±0.2mm in key areas), this display is perfect for compact devices where space is at a premium.
(4)Power-Efficient Performance:
Driven by the SSD1315Z, it features a passive matrix drive for low power consumption, helping to extend the battery life of your devices.
(5) Precise Pixel Configuration:
The display has a dot size of 0.15×0.15mm and a dot pitch of 0.17×0.17mm, with an active area of 21.74×10.86mm, enabling accurate and detailed visual presentations.
2. Product technical parameters
| Keywords: |
0.96-inch Monochrome Dot Matrix OLED |
| Resolution: |
128×64 Pixels |
| LCD Interface: |
IIC |
| LCD Size: |
27X26X3.02mm |
| Visual Area: |
21.74X10.86mm |
| Pin Number: |
30 Pins |
| Control driver: |
SSD1315Z |
| Operating Temp: |
-40℃～＋70℃ |
| Storage Temp: |
-40℃～＋85℃ |
| Display Type: |
Positive Display |
| perspectives: |
All Viewing Angles 80/80/80/80 |
| Backlight: |
LED white light |
| Display Color: |
OLED (Blue, White, Dual - Color) |
| Contrast Ratio: |
2000 : 1 ( Dark Room Contrast ) |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |
3. Product in details:
PS: This 0.96 -inch (128×64 Pixels)OLED LCD display module is available for order with standard parameters. We also offer 128×64 OLED LCDs resolution in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
(1) Wearable Devices: Its compact size and low-power consumption make it an excellent choice for smartwatches, fitness trackers, and other wearable electronics, providing clear and eye-catching information displays.
(2) Portable Gadgets: Ideal for use in handheld gaming devices, portable media players, and remote controls, where a small yet high-quality display is needed to enhance user experience.
(3) Industrial Instruments: Suited for various industrial control panels, meters, and sensors, thanks to its high contrast and visibility, ensuring accurate data display even in challenging environments.
(4) Consumer Electronics: Can be integrated into small home appliances, such as digital thermostats, air quality monitors, and kitchen appliances, to offer intuitive user interfaces.
