Custom & OEM 1.54-inch OLED Display Module Compact Design & Power Efficiency Lcd Monitor With128×64 Dot
What is OLED Display Modules?
An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied. OLED Display Modules are widely used in various electronic devices due to their excellent characteristics, such as high contrast ratios, wide viewing angles, fast response times, and the ability to display vibrant and accurate colors. They can be found in applications like smartphones, tablets, televisions, wearable devices, and automotive displays. Additionally, OLED Display Modules often come with integrated driver circuits to control the operation of the OLED pixels and interface with the host device.
1. Product Introduction

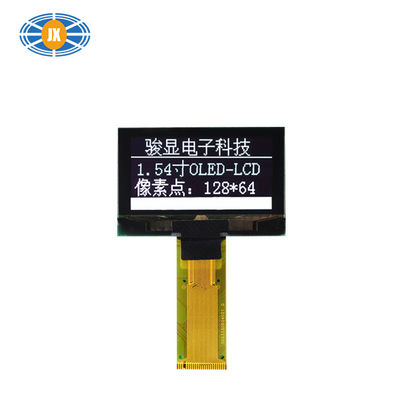

The 1.54-inch JM-PO149-OL12864NIN0154 OLED display module combines high-performance features for versatile applications. With a 128×64 dot matrix and monochrome display, it offers a crisp visual experience with an 86% aperture rate, 2000:1 contrast ratio, and 160° wide viewing angle, ensuring clear visibility from various perspectives.
2. Key Features
Multiple Interfaces: Supports 6800/8080 parallel, 4-wire SPI, and I2C interfaces, enabling flexible integration with different systems.
Robust Performance: Driven by CH1116 IC, it operates stably at -40°C to 70°C and stores safely at -40°C to 85°C, suitable for harsh environments.
Compact Design: With dimensions of 42.04×27.22×1.41mm, it fits space-constrained devices.
Reliability Assured: Passed high/low-temperature, humidity, and vibration tests, ensuring long-term durability.
Power Efficiency: Low-power consumption in sleep mode (10μA) and optimized power supply (VDD: 1.65-3.3V, VCC: 11.5-12.5V).
3. Product technical parameters
| Keywords: |
1.54-inch Monochrome Dot Matrix OLED |
| Resolution: |
128×64 Pixels |
| LCD Interface: |
6800/8080 parallel, 4-wire SPI, |
| LCD Size: |
42.04×27.22×1.41mm |
| Visual Area: |
37.052x 19.516mm |
| Pin Number: |
24 Pins |
| Control driver: |
CH1116 |
| Operating Temp: |
-40℃～＋85℃ |
| Storage Temp: |
-40℃～＋85℃ |
| Display Mode: |
Passive Matrix |
| perspectives: |
All Viewing Angles |
| Display Color: |
White, Yellow, Blue |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

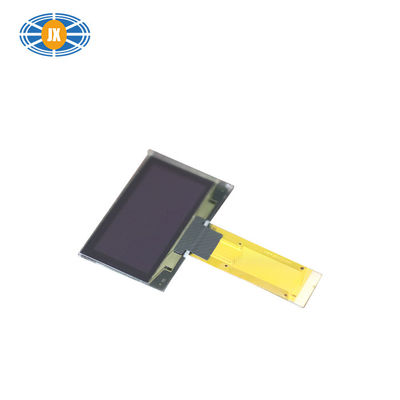

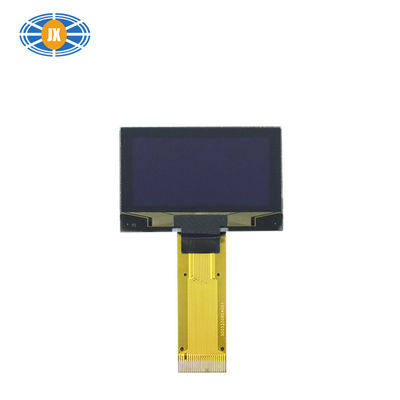

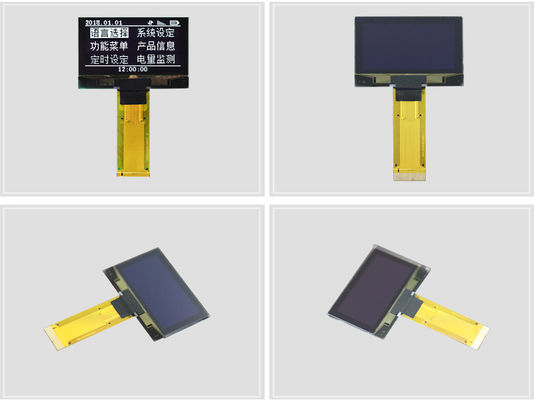

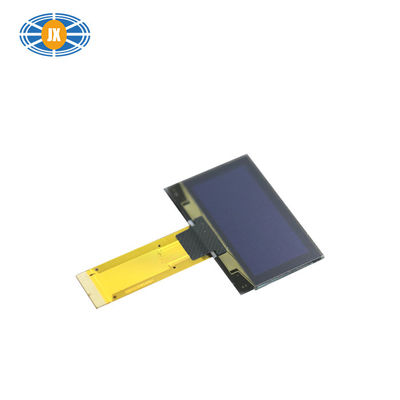

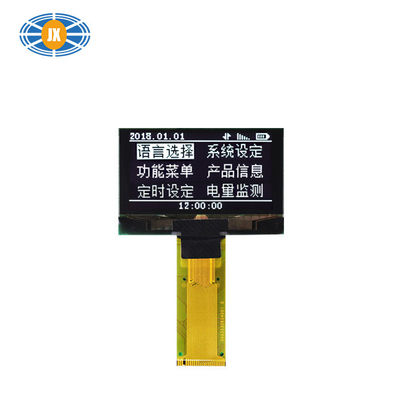

4. Product in details:
PS: This 1.54 -inch (128×64 Pixels)OLED LCD display module is available for order with standard parameters. We also offer 128×64 OLED LCDs resolution in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
5. Application fields
Industrial Electronics: Industrial meters, control panels, and embedded systems.
Consumer Electronics: Smart wearables, portable devices, home automation interfaces, and medical instruments.
DIY & Prototyping: Arduino/Raspberry Pi projects, IoT devices, and custom display solutions.
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). 0.42 to 5.5 inch OLED screen& OLED displays. Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
Please Note
All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
