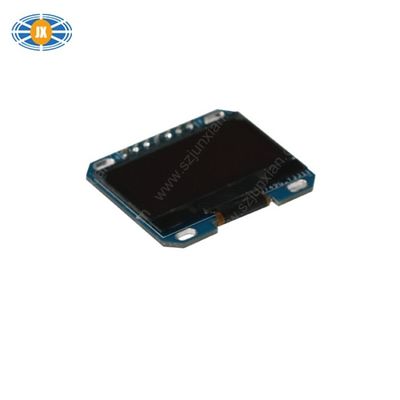

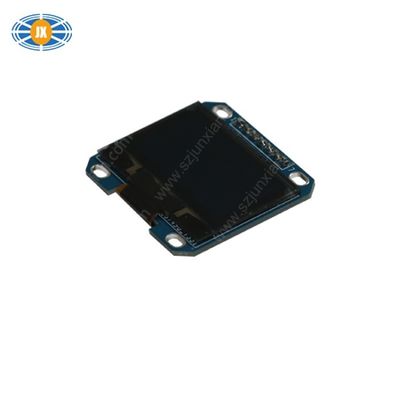

Custom & OEM 1.3-inch OLED Display Module With SH1106G Driver 128x64 160° Viewing Angle Lcd Monitor
What is OLED Display Modules?
An OLED Display Module is a type of display device that uses organic light - emitting diode (OLED) technology. It consists of an array of OLED pixels that can emit light when an electric current is applied. OLED Display Modules are widely used in various electronic devices due to their excellent characteristics, such as high contrast ratios, wide viewing angles, fast response times, and the ability to display vibrant and accurate colors. They can be found in applications like smartphones, tablets, televisions, wearable devices, and automotive displays. Additionally, OLED Display Modules often come with integrated driver circuits to control the operation of the OLED pixels and interface with the host device.
1. Product Features and Advantages
(1) High-Performance Visual Display:
1.3-inch OLED module with 128×64 dot matrix and white emission, delivering sharp visuals with a typical brightness of 110 cd/m² and 2000:1 contrast ratio for vibrant clarity in diverse environments.
(2)Wide Viewing Angle & High Aperture Rate:
Utilizes SH1106G driver IC to enable a 160° wide viewing angle and 83.3% aperture rate, ensuring excellent contrast and visibility from multiple perspectives.
(3) Flexible Connectivity & Power Supply:
Integrates a 4-wire serial interface for seamless connectivity. Supports dual power modes: internal charge pump (8.5–9.5V) and external (11.5–12.5V) for OLED operation, with 3.0–5.0V logic supply.
(4) Compact & Rugged Design:
COG-assembled module measures 36.2×31.6×2.63mm, ideal for space-constrained applications. Operates reliably at -40°C to +70°C and stores at -40°C to +85°C, suitable for harsh environments.
(5) Robust Protection & Safety:
Built-in ESD protection ensures safe handling, while industrial-grade durability meets requirements for both consumer and professional use.
2. Product technical parameters
| Keywords: |
1.3-inch Monochrome Dot Matrix OLED |
| Resolution: |
128×64 Pixels |
| LCD Interface: |
4-wire serial interface |
| LCD Size: |
36.2X31.6X2.63mm |
| Visual Area: |
29.42X14.7mm |
| Pin Number: |
30 Pins |
| Control driver: |
SH1106G |
| Operating Temp: |
-40℃～＋70℃ |
| Storage Temp: |
-40℃～＋85℃ |
| Display Type: |
Passive Matrix |
| perspectives: |
All Viewing Angles |
| Display Color: |
White, Yellow, Blue |
| Contrast Ratio: |
2000 : 1 ( Dark Room Contrast ) |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |

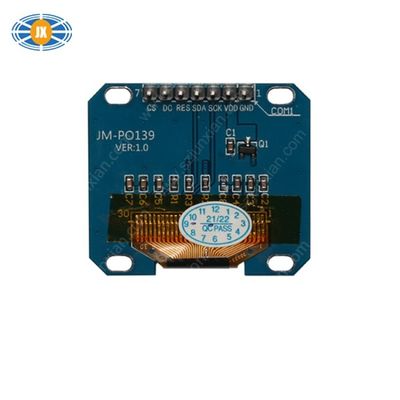

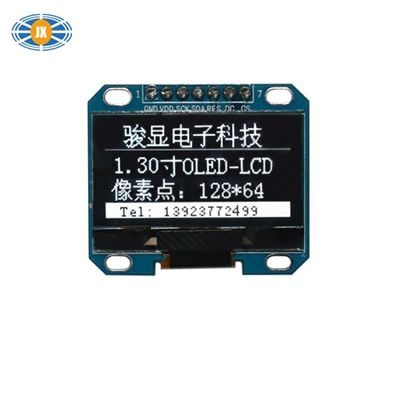

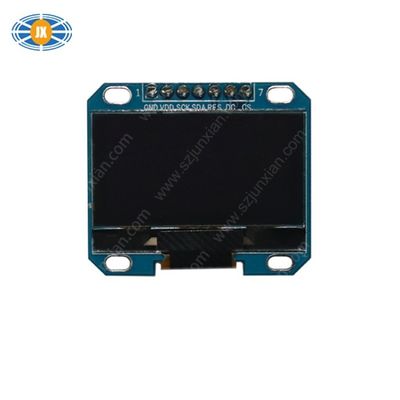

3. Product in details:
PS: This 1.3 -inch (128×64 Pixels)OLED LCD display module is available for order with standard parameters. We also offer 128×64 OLED LCDs resolution in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
Industrial Electronics: Industrial meters, control panels, and embedded systems.
Consumer Electronics: Smart wearables, portable devices, home automation interfaces, and medical instruments.
DIY & Prototyping: Arduino/Raspberry Pi projects, IoT devices, and custom display solutions.
