1.3-Inch Monochrome OLED Screen – SSD1306 Driver & Versatile Parallel/SPI/I²C Interfaces for MCU Systems
Product Overview

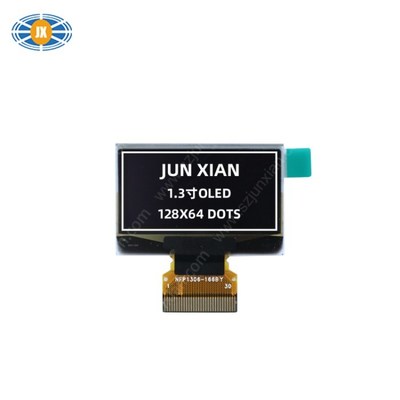

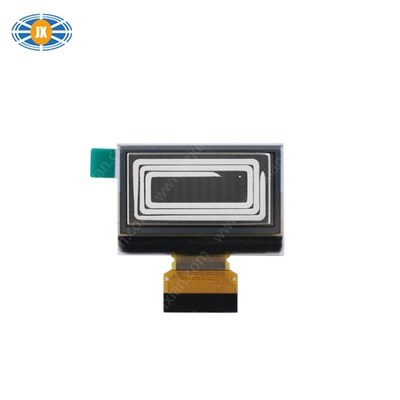

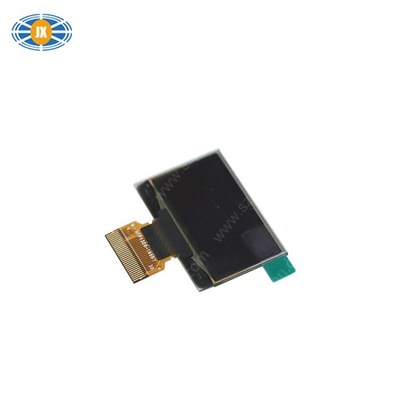

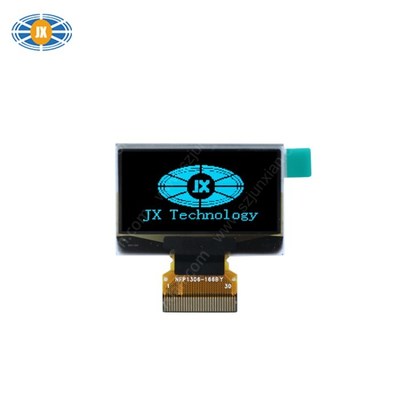

The JM-PO158-01 is a folding-type monochrome OLED display module adopting COG (Chip-on-Glass) packaging. Specifically designed for space-constrained compact electronic devices, it features a 1.3-inch active display area and 128×64 pixel resolution, delivering clear white monochrome visuals.
1. Product Features and Advantages
(1) Display Parameters:
Display Type: Monochrome OLED
Active Area (A/A) Dimensions: 29.42±0.2mm (width) × 14.7±0.2mm (height), calculated based on pixel pitch (P0.23×128-0.02=29.42mm; P0.23×64-0.02=14.7mm)
Pixel Resolution: 128 × 64 Pixels
Display Color: White
(2) Driver & Control
Driver IC Model: SSD1306
General Tolerance: ±0.30mm (standard for dimensional precision control)
(3) Interface & Hardware Compatibility
Supported Interface Types: 8-bit 68XX/80XX Parallel Interface, 3/4-wire SPI Interface, I²C Interface – compatible with communication requirements of various microcontroller (MCU) systems
(4) Dimensional Specifications
Panel Size: 34.5±0.2mm (including protective structure), 23±0.2mm (specific specification)
Polarizer Size: 33.5±0.2mm, 18.2±0.2mm (corresponding to different panel specifications)
Protective Tape Thickness: Maximum 0.15mm, providing physical protection while maintaining an ultra-thin structure
(5) Structural Details
Glue Specification: 15×8×0.05mm, ensuring firm bonding of all module components
Contact Side Width: W=0.30±0.03mm, guaranteeing reliable electrical connection
2. Product technical parameters
| Keywords: |
1.3-inch Monochrome Dot Matrix OLED |
| Resolution: |
128×64 Pixels |
| LCD Interface: |
8-bit 68XX/80XX Parallel, 3/4-wire SPI |
| LCD Size: |
34.5×23×1.45mm |
| Visual Area: |
34.5x19.2mm |
| Pin Number: |
30 Pins |
| Control driver: |
SSD1306 |
| Operating Temp: |
-40℃～＋70℃ |
| Storage Temp: |
-40℃～＋85℃ |
| Display Type: |
Positive Display |
| perspectives: |
All Viewing Angles 80/80/80/80 |
| Backlight: |
LED white light |
| Display Color: |
Black White Blue Yellow Green Fonts |
| Contrast Ratio: |
2000 : 1 ( Dark Room Contrast ) |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |
3. Product in details:
PS: This 1.3 -inch (128×64 Pixels)OLED LCD display module is available for order with standard parameters. We also offer 128×64 OLED LCDs resolution in various specifications to meet different customer needs.If you need other sizes or customized products, you can also contact us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields
(1) Wearable Devices: Its compact size and low-power consumption make it an excellent choice for smartwatches, fitness trackers, and other wearable electronics, providing clear and eye-catching information displays.
(2) Portable Gadgets: Ideal for use in handheld gaming devices, portable media players, and remote controls, where a small yet high-quality display is needed to enhance user experience.
(3) Industrial Instruments: Suited for various industrial control panels, meters, and sensors, thanks to its high contrast and visibility, ensuring accurate data display even in challenging environments.
(4) Consumer Electronics: Can be integrated into small home appliances, such as digital thermostats, air quality monitors, and kitchen appliances, to offer intuitive user interfaces.
