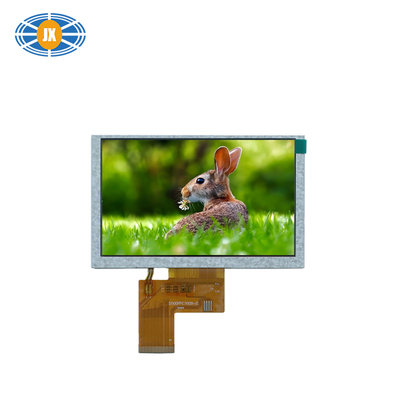

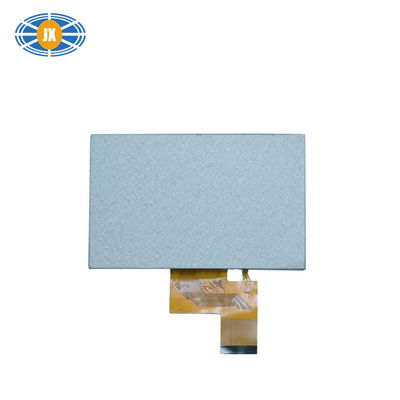

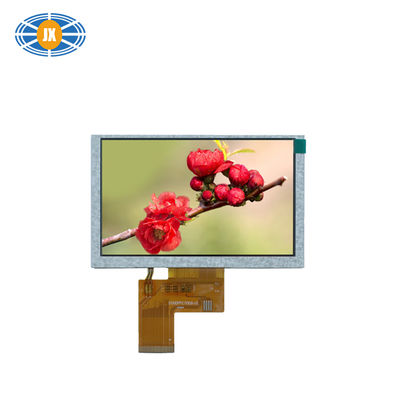

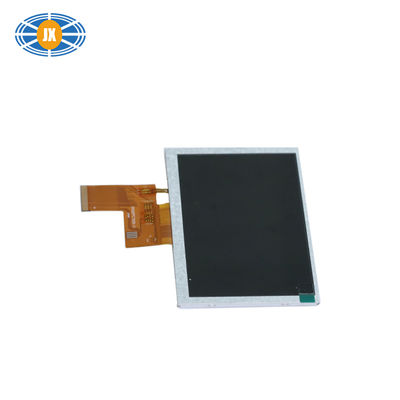

JM-PT136-00 5-Inch TFT Color LCD Display Module
1. Product Features &Advantages
Engineered for industrial, automotive, and consumer electronics, the JM-PT136-00 is a high-performance 5-inch TFT color LCD module, delivering vivid visuals with a 1200:1 contrast ratio and 500 cd/m² typical brightness. Its 80° wide viewing angle (left/right/top/bottom) ensures consistent clarity from any orientation, while a 30ms response time eliminates motion blur for dynamic content.
Key Specifications:
Optical & Mechanical: 108.00×64.80mm active area, 120.70×75.80×2.80mm compact profile, and flicker-free display .
Electricals: 3.0V typical supply voltage (VDD/VCI), 60mA backlight current, 1260mW backlight power, and -20℃ to 70℃ operating temperature .
Interface: Parallel RGB (R0-R7/G0-G7/B0-B7) with PCLK/HSYNC/VSYNC signals, plus integrated touch panel control pins (XR/YD/XL/YU) .
2. Product technical parameters
| Keywords: |
5-inch TFT color LCD |
| Resolution: |
800×480 Pixels |
| LCD Interface: |
RGB 8-bit |
| LCD Size: |
120.7X75.8X2.8mm |
| Visual Area: |
108.00X64.80mm |
| Control driver: |
ST7265 |
| Surface Luminance: |
500cd/m2 |
| Touch Screen: |
Selectable |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋80℃ |
| Display Type: |
IPS |
| Driving voltage: |
3.3V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white light |
| Display Color: |
262K |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |
4. Product in details:
PS: We offer customization for total LCD assemblies, including display brightness tuning, FPC shape design, and interface adjustments to meet specific application needs. ISO 9001-certified for reliability, this module suits smart terminals, industrial controls, and medical devices. Contact Shenzhen JunXian Electronic for tailored solutions or bulk orders.
4. Application fields
(1) Industrial Control Field: Adapts to -20℃~70℃ operating temperature, with high contrast and brightness for clear equipment parameter display, suitable for PLC control cabinets and machine tool operation panels
(2) Medical Portable Device Field: Features flicker-free display and 80° wide viewing angle, suitable for handheld ECG monitors and oximeters to meet medical data reading needs
(3) Self-Service Terminal Field: Supports touch control pins, with a compact 5-inch size, suitable for self-service inquiry machines and payment terminals, adapting to operations in different light environments
(4) Automotive Auxiliary Display Field: Operating temperature matches the automotive environment, can be used as an auxiliary car navigation screen and rear-seat entertainment screen, with wide viewing angle for viewing from different in-car seats
(5) Smart Home Control Field: Has a moderate size and customizable FPC, suitable for smart home central control panels, clearly displaying temperature control and lighting control interfaces
