Customized VATN Display LCD Segment Code Display With Super High Contrast Ratio: Up To 120:1
Custom High Backlight Brightness Segment Code Display Mutiple Segmented Screen With Negative Mode
What is a segmented liquid crystal display?
A segmented liquid - crystal display (LCD segment - code liquid - crystal screen) refers to a liquid - crystal screen whose display content is divided into multiple independent segments. Each segment can be individually controlled to be displayed or not. Its display content is immovable and the content of a single segment is fixed, which differentiates it from dot - matrix liquid - crystals. It can be used to display numbers, text, and patterns. The types of polarizers include fully - transparent type, semi - transparent type, and reflective type.
1. product description:

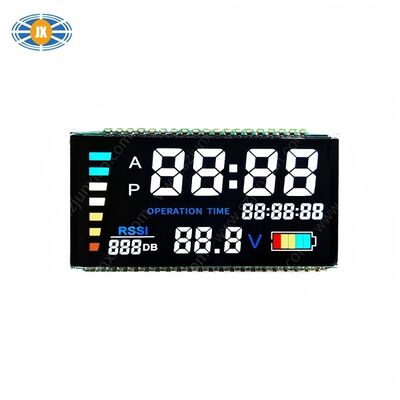

Customized VATN Display LCD
VATN (Vertical Align Twisted Nematic) is a display technology distinct from traditional TN LCD in its twist orientation, eliminating the need for crossed polarizers. VATN enables a true black-and-white operation mode with ultra-fast response speed, making it ideal for dynamic image display and large-screen applications.
2. Key Advantages Driving VATN LCD Integration into New Products:
- Highly Competitive Unit Pricing
- Significantly Reduced Tooling Costs
- Ultra-Low Power Consumption
- Excellent Sunlight Readability
- Wide-Range Operating Temperature Capability
3. VATN Display LCD / Alphanumeric LCD Display Overview:
VATN displays are characterized by high contrast, wide viewing angles, and high brightness, suited for applications such as security control systems, white goods, audio equipment, medical devices, POS terminals, and dashboard interfaces.
- Super high contrast ratio: Up to 120:1
- Wide viewing angle: Approximately 170°(H) / 110°(V)
- Operation mode: Negative mode only
- Backlight options: White / green / yellow-green / red / blue
- High backlight brightness
- Customizable four-color silk ink design available
- Certified Quality: Certified to GB/T19001 - 2016/IS09001:2015 standards, and compliant with REACH and RoHS regulations, it ensures high - quality manufacturing and environmental friendliness.
4. Product technical parameters
| Keywords |
VA segmented display (various specifications and styles) |
| Resolution |
customizable |
| LCD Interface |
customizable |
| LCD Size |
customizable |
| Visual Area |
depends on model |
| Control driver: |
/ |
| Surface Luminance |
100-500cd/m2 |
| Operating Temp |
/ |
| Storage Temp |
/ |
| Display Type |
VA Black Film |
| Driving voltage |
3.0-5.0V |
| LED Lifetime |
40,000 hours |
| Backlight |
LED white light |
| Display Color |
Black/blue/white |
| Certificate |
GB/T19001-2016/IS09001:2015 |
| Compliance |
REACH & RoHS Compliant |

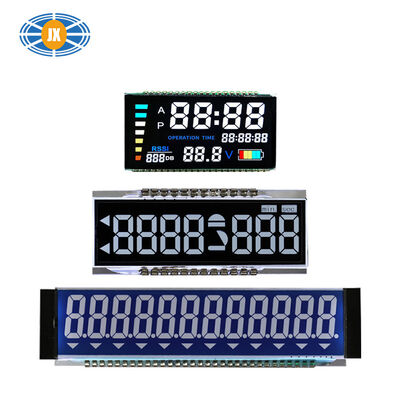

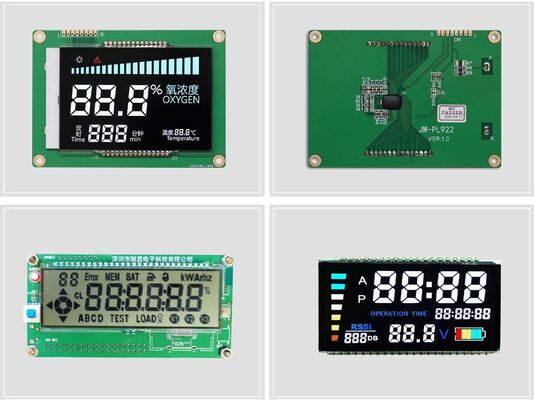

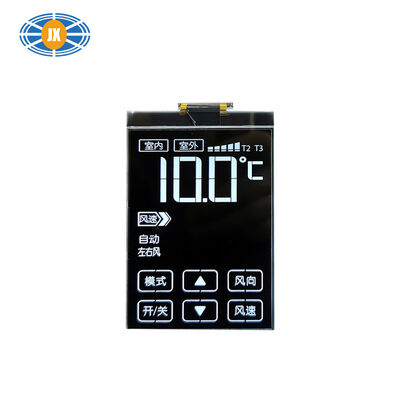

5. Product in details:
PS: This VA segmented display module is available for order. If you need other sizes or customized products, please contact us and provide relevant drawings. We also offer all specifications and features are tailored to meet individual customer requirements.
4. Application fields
Segment code displays, such as seven - segment displays, have the following application areas:
1. Consumer Electronics
Digital Clocks: Widely used to show hours, minutes, and seconds clearly. For example, bedside digital clocks in households rely on segment code displays for easy - to - read time indication.
Calculators: Basic calculators use segment code displays to present input numbers and calculation results. The simple and distinct digit display is convenient for users to confirm operations.
Home Appliances: In devices like microwave ovens, washing machines, and refrigerators, segment code displays are used to show settings (such as cooking time in a microwave) and operating status (e.g., remaining washing cycle time).
2. Industrial and Instrumentation
Electronic Meters: For measuring voltage, current, power, etc. Segment code displays can accurately show measurement values in industrial control panels, helping technicians monitor and adjust equipment.
Process Control Panels: In factories, segment code displays are part of control panels to display parameters like temperature, pressure, and flow rate of production processes, enabling operators to make timely adjustments.
3. Automotive Industry
Dashboard Indicators: Used to display vehicle speed, engine RPM, fuel level, and other vital information. Segment code displays offer clear and quick - to - read information for drivers while on the road.
On board Diagnostic Systems: To show diagnostic trouble codes and vehicle status information during maintenance or when a fault occurs.
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays,ranging from 0.96 inch to 15.6 inches,including models with fully integrated capacitive touch panels (CTP); we offer 0.42 to 5.5 inch OLED screen& OLED displays and mutiple segmented screen styles . Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
