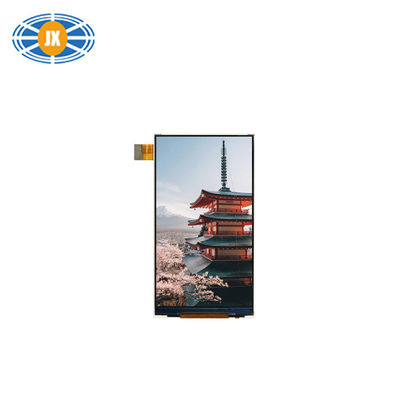

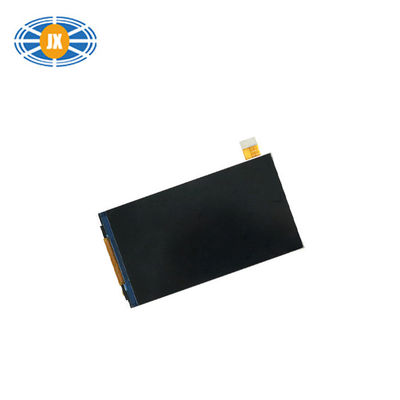

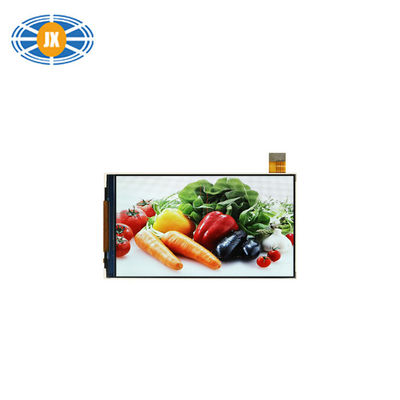

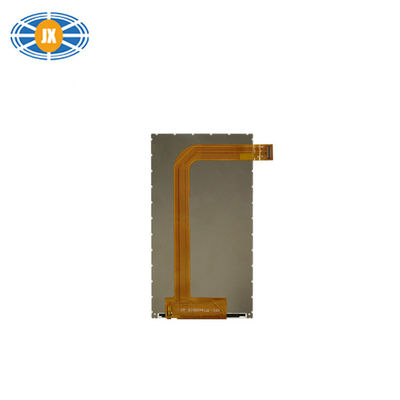

Full Viewing Angle 4.45-Inch LCD Module With MIPI Interface 400 Cd/M² For Medical & Industrial Imaging
1.Key Features & Advantages
(1)Superior Visual Performance
4.45-inch IPS LCD with 480×854 resolution and 16.7M colors ensures crisp, high-contrast visuals in demanding industrial environments.
1200:1 contrast ratio and 400 cd/m² brightness enhance readability in challenging lighting conditions (e.g., direct sunlight, low-light settings).
Full viewing angle (85° in all directions at CR≥10) enables flexible operation from any perspective, ideal for multi-user or dynamic setups.
(2) Robust Industrial-Grade Durability
Operates reliably across -20°C to 70°C (working) and -30°C to 80°C (storage), withstanding extreme temperature fluctuations.
Passes rigorous testing: ESD protection (±2kV HBM/±8kV air), thermal shock resistance, and vibration tolerance, ensuring longevity in harsh environments.
Constructed with RoHS-compliant materials, meeting environmental and safety standards for global use.
(3) Efficient Connectivity & Color Accuracy
Driven by GC9503CV driver with MIPI interface for fast data transfer and stable performance in embedded systems.
RGB-stripe pixel arrangement and 70% NTSC color gamut (CIE1931 coordinates) deliver precise color reproduction, critical for medical imaging and industrial diagnostics.
(4)Wide Operational Flexibility
Designed for rugged industrial applications, balancing durability with visual clarity for mission-critical tasks.
(5)Long - lasting and Safe
With an LED white - light backlight that has a lifespan of 40000 hours, it ensures long - term reliable use. Moreover, it complies with REACH and RoHS standards, which means it is environmentally friendly and safe for both users and the environment. It also holds the GB/T19001 - 2016/IS09001:2015 certificate, attesting to its high - quality manufacturing process.
2. Product technical parameters
| Keywords: |
4.45-inch TFT color LCD |
| Resolution: |
480×854 Pixels |
| LCD Interface: |
MIPI |
| LCD Size: |
60.00x109.00x2.15mm |
| Visual Area: |
55.44X98.64mm |
| Control driver: |
GC9503CV |
| Surface Luminance: |
400cd/m2 |
| Touch Screen: |
selectable |
| Operating Temp: |
-20℃～＋70℃ |
| Storage Temp: |
-30℃～＋70℃ |
| Display Type: |
IPS |
| perspectives: |
ALL.0'CLOCK |
| Driving voltage: |
3.3V |
| LED Lifetime: |
40,000 Hours |
| Backlight: |
LED white light |
| Display Color: |
Normally White |
| Certificate: |
GB/T19001-2016/IS09001:2015 |
| Compliance: |
REACH & RoHS Compliant |
3. Product in details:
This 4.45 -inch Industrial-Grade LCD Display is Your Ideal Display Solution,you can directly consult our customer service to place an order with standard perameter. Besides, we have various specifications for this 4.45-inch size. If you need other sizes or customized products, please feel free to contact us and provide relevant drawings. We accept customized services and OEM processing.
4. Application fields of LCD displays

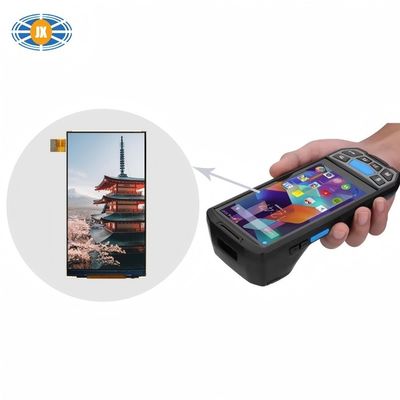

Handheld industrial devices (e.g., barcode scanners, field monitors)
Smart door locks & access control systems (reliable operation in outdoor/indoor environments)
Industrial control panels & embedded systems (high-temperature/high-vibration settings)
Portable medical tools (e.g., diagnostic devices, point-of-care equipment requiring color accuracy)
IoT & automation interfaces (flexible viewing angles for remote or multi-angle operation)
Why Choose This Display?
Built for resilience and precision, this module combines industrial-grade durability with advanced visual technology, making it the ideal choice for professionals who demand reliability, color accuracy, and performance in harsh or mission-critical environments.
Compliant with European and international standards, it ensures seamless integration into global projects.
Contact us today to enhance your device with cutting-edge industrial display solutions!
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules
With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, and PCBA, ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
Please Note
All photos on this site are authentic. However, due to variations in lighting, shooting angles, and display resolutions, slight chromatic aberration may occur. Thank you for your understanding.
We support product Customized Service and OEM& ODM service. Please contact our professional customer service team before placing an order to confirm product specification in details.
